Exhibition Stands and Booth Guides, texture mapping and templates

How to add booths to a space

How to change the branding of the booth

Texture Atlas and Aspect Ratio

Adding margin to prevent bleeding

Booths

Basic booth

Booth A

Booth B

Booth C

Booth D

Booth E

Booth F

Booth G

3 Sided Hexagonal Booth

Modules

Stand A Armchair table

Stand A Counter

Stand A Counter L

Stand A Totem 1

Stand A Totem 2

Stand A Totem 3

Stand A Table round chairs

Stand B Counter

Stand B Stool

Stand B Table chair

Stand B Wall

Stand C Counter

Stand C Wall

Stand D Counter stools

Stand D Spouse

Stand D Table chairs

Stand D TV Furniture

Stand E Counter 1

Stand E Counter 2

Stand E Lectern

Stand E Table stool

Stand F Chairs

Stand F Counter

Stand F Lectern

How to add booths to a space

As an editor

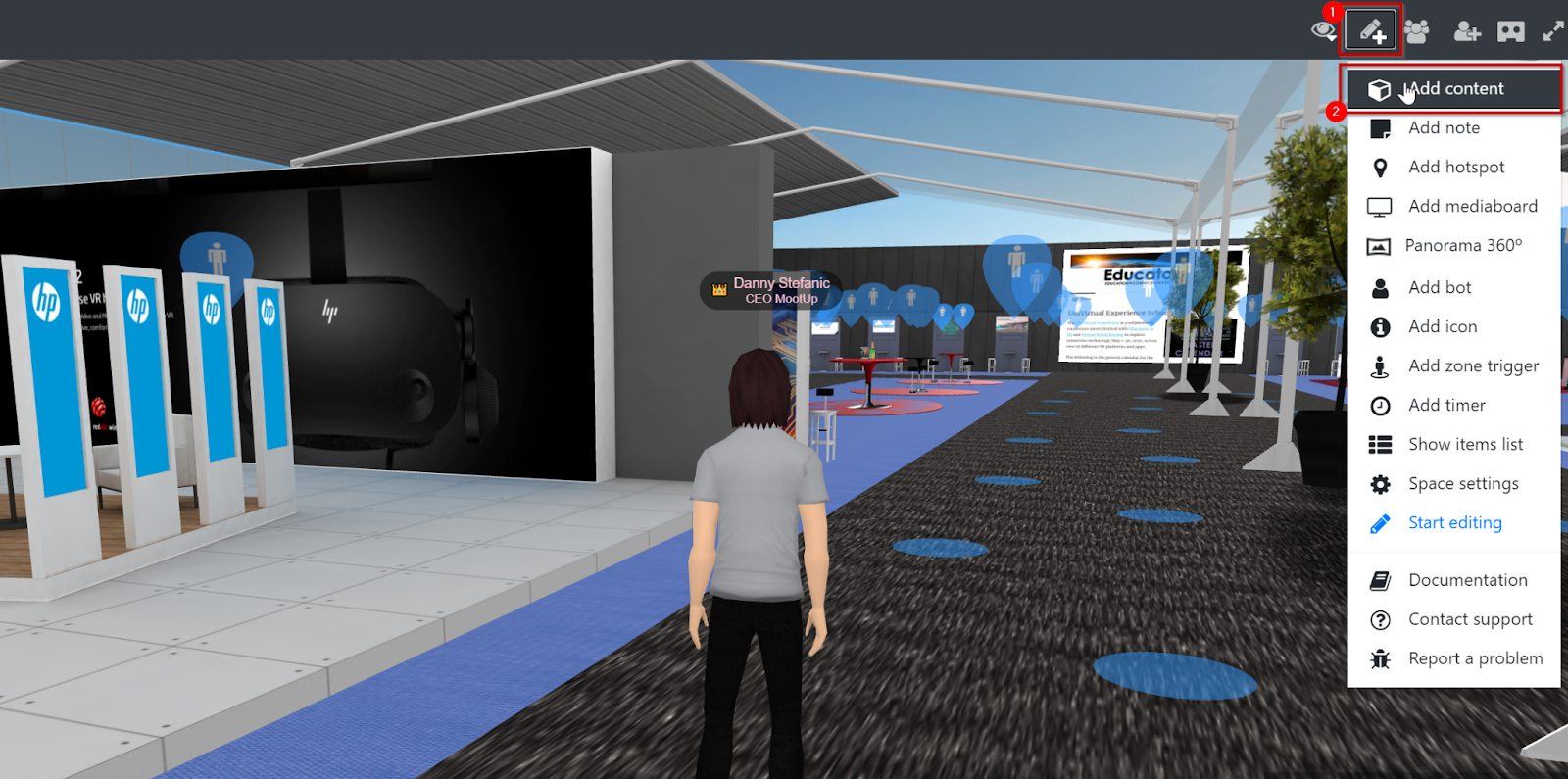

  1. Click the Pencil+ icon in the top toolbar
  2. Choose Add content from the menu

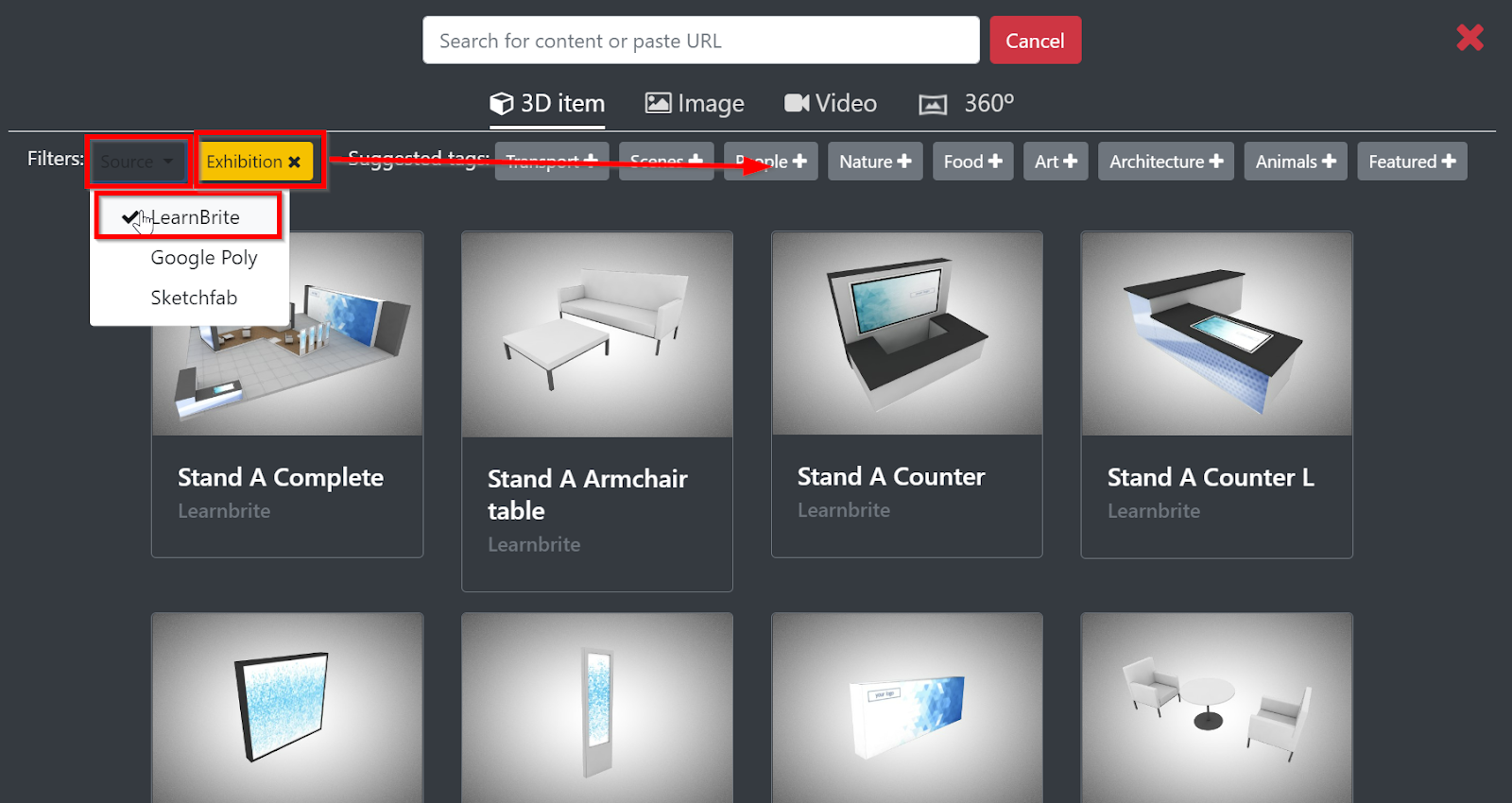

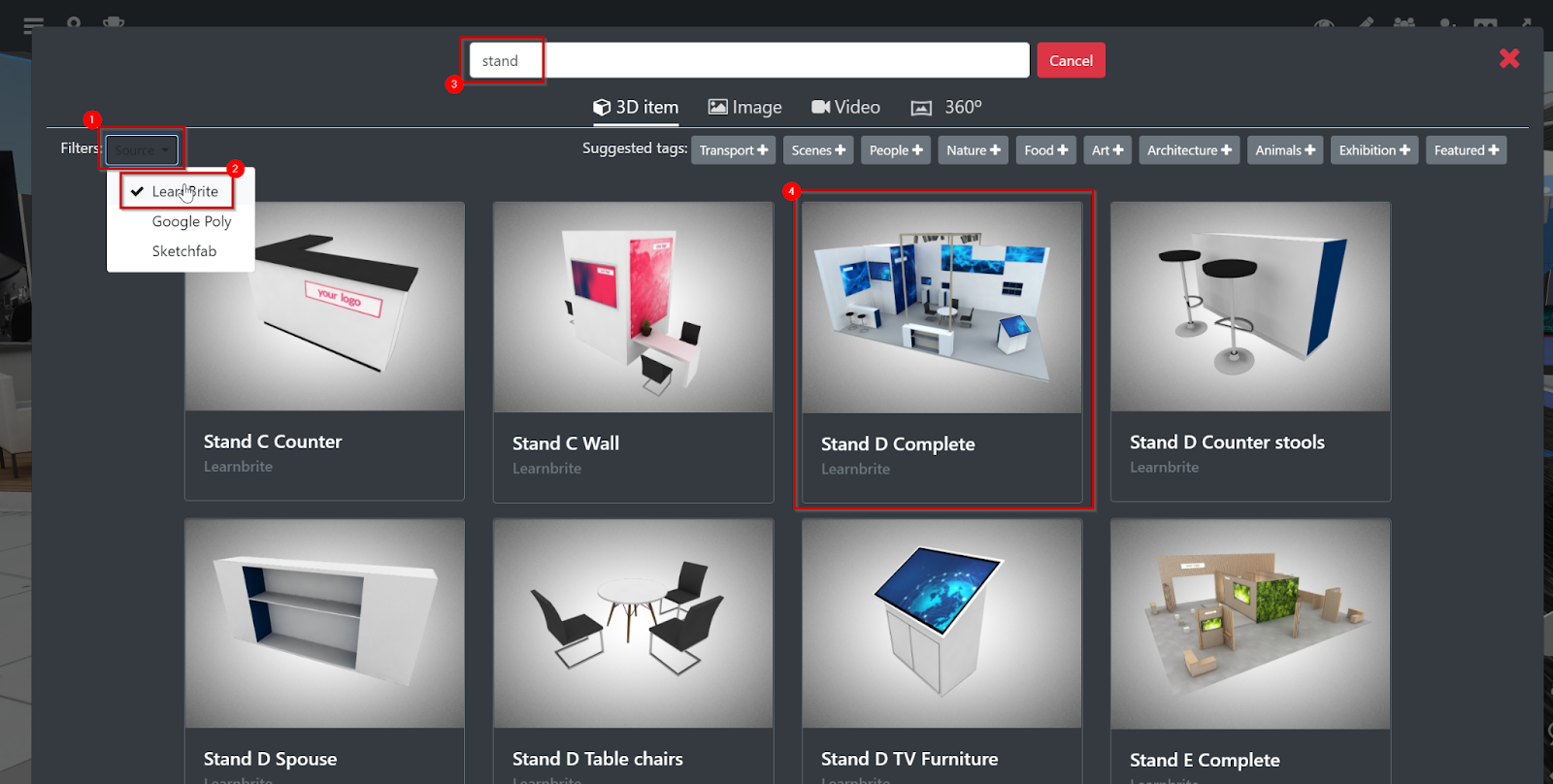

  1. Click in the filter
  2. Choose LearnBrite search engine
  3. Enter the keyword stand into the search field
  4. Click on the booth item you want to add to the space

You can also use the Exhibition tag filter

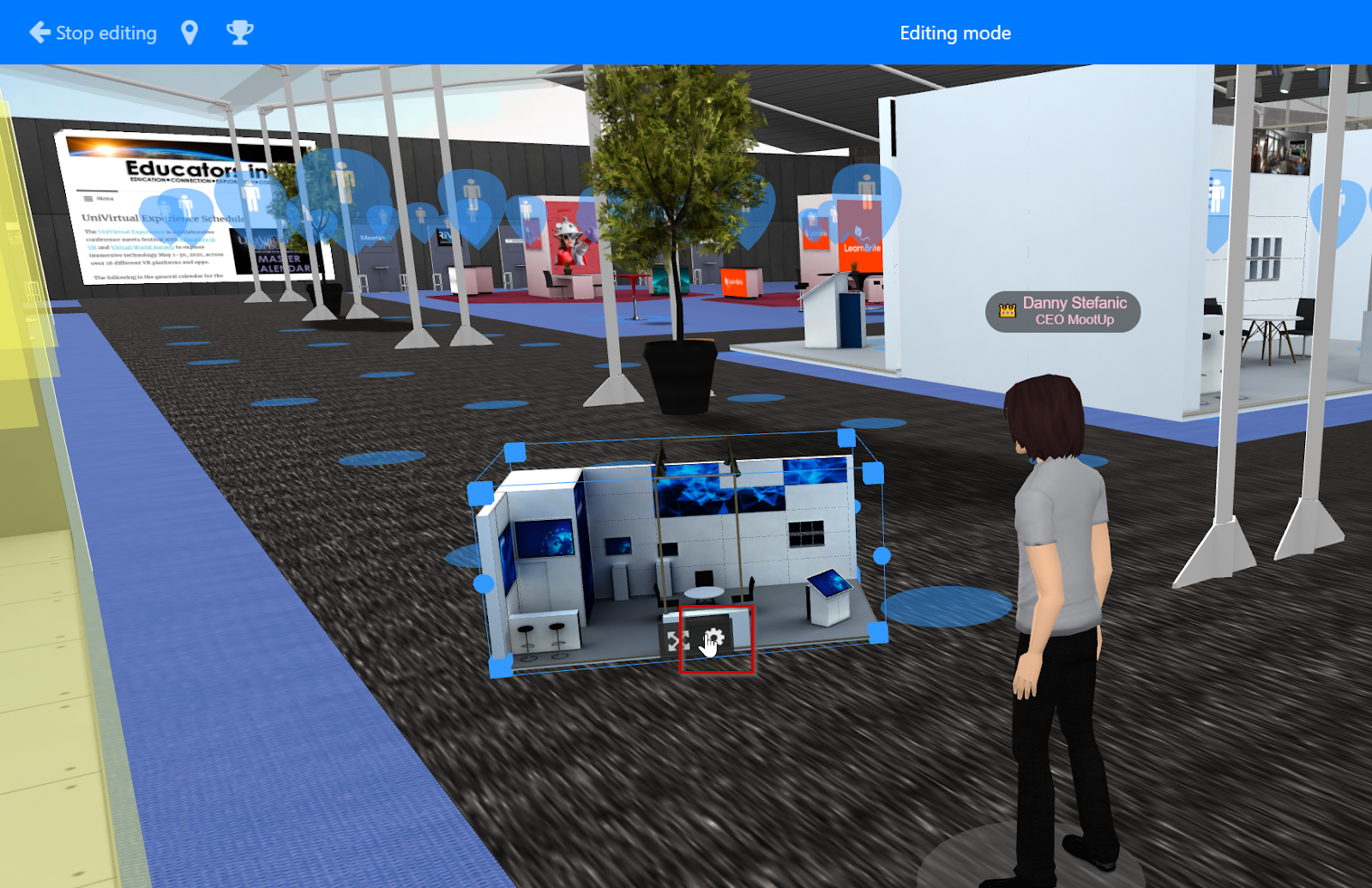

Click on the settings/cog icon on the booth item

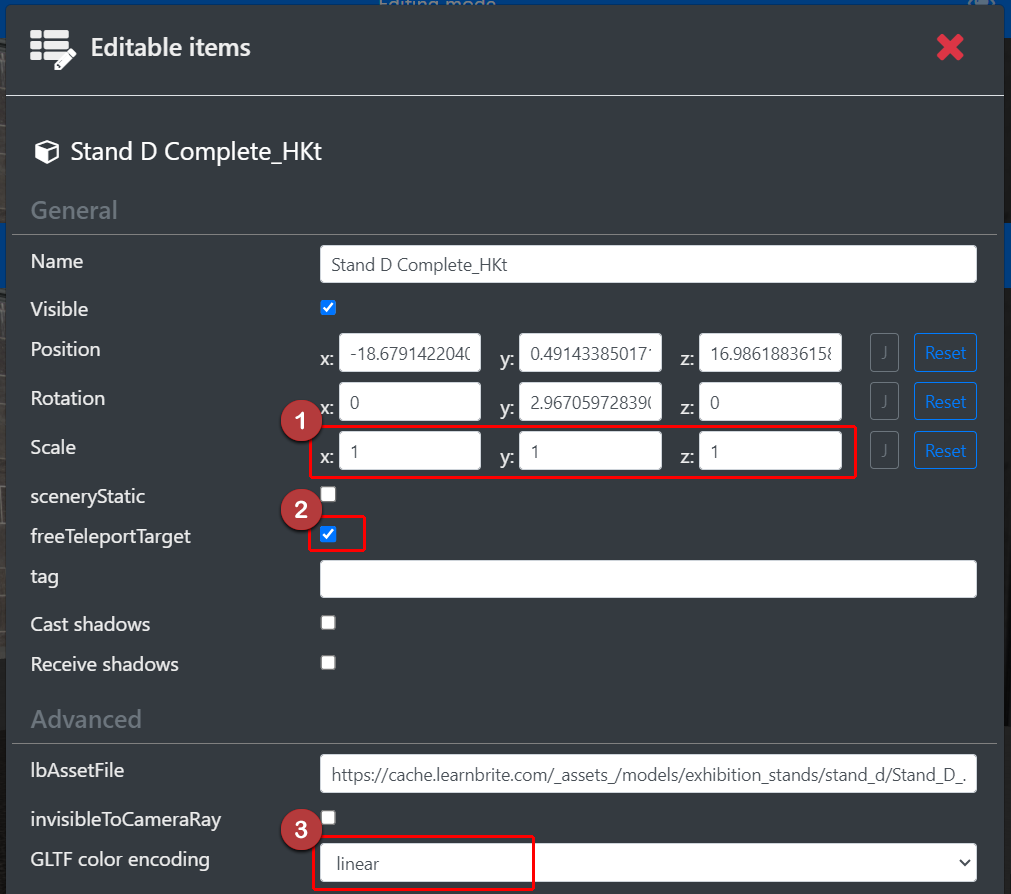

  1. Set the scale to "x":1, "y":1, "z":1
  2. Check the freeTeleportTarget checkbox
  3. Set the GLFT color encoding to linear
  4. Scroll down and click the Save button

The booth will appear at proper size, allow navigation with click+hold and have improved lighting.

How to change the branding of the booth

  1. Prepare the branding image
  1. Download the template file (click on the .jpg link based on the booth you chose, then right-click and Save as.. to your computer) and prepare it with your own branding resources. Check “Texture Atlas and Aspect Ratio” section below.
  2. Export the resulting image as JPG (recommended*) or PNG
    * JPG files compress better and will load more quickly
  3. Upload the image to Hyperspace Storage (see guide on Storage & Files);
  4. Once done, copy its URL by clicking on the small “globe” icon on the right side of the screen.
  5. Paste the URL you just copied in the following snippet (replace TEXTURE_URL)

{"materialPropertiesOverrides":[{"materialNames":["Branding"],"overrides":{"map":"TEXTURE_URL"}}]}

  1. Update the booth to use the new image
  1. Go to the 3D environment
  2. Enter edit mode
  3. Hover over the booth and click on the cog icon
  4. Add the snippet you completed earlier with the URL of your texture in the metadata field
  5. Click Save item

Texture Atlas and Aspect Ratio

A Texture Atlas is a collection of textures arranged into one single image with the purpose of optimizing memory. Each booth has one texture atlas with all the branding on it.

In the texture atlas, the maps are arranged to maximize the use of the available space. This means some of the maps might be rotated, or stretched. When adding your custom branding, you need to take this into account. In the next section (“Booths”), you will find a list of recommended map sizes. For each one of your new maps, first you need to create your design in that size. When it’s ready, then it needs to be placed on the template atlas, replacing completely the original one.

Adding margin to prevent bleeding

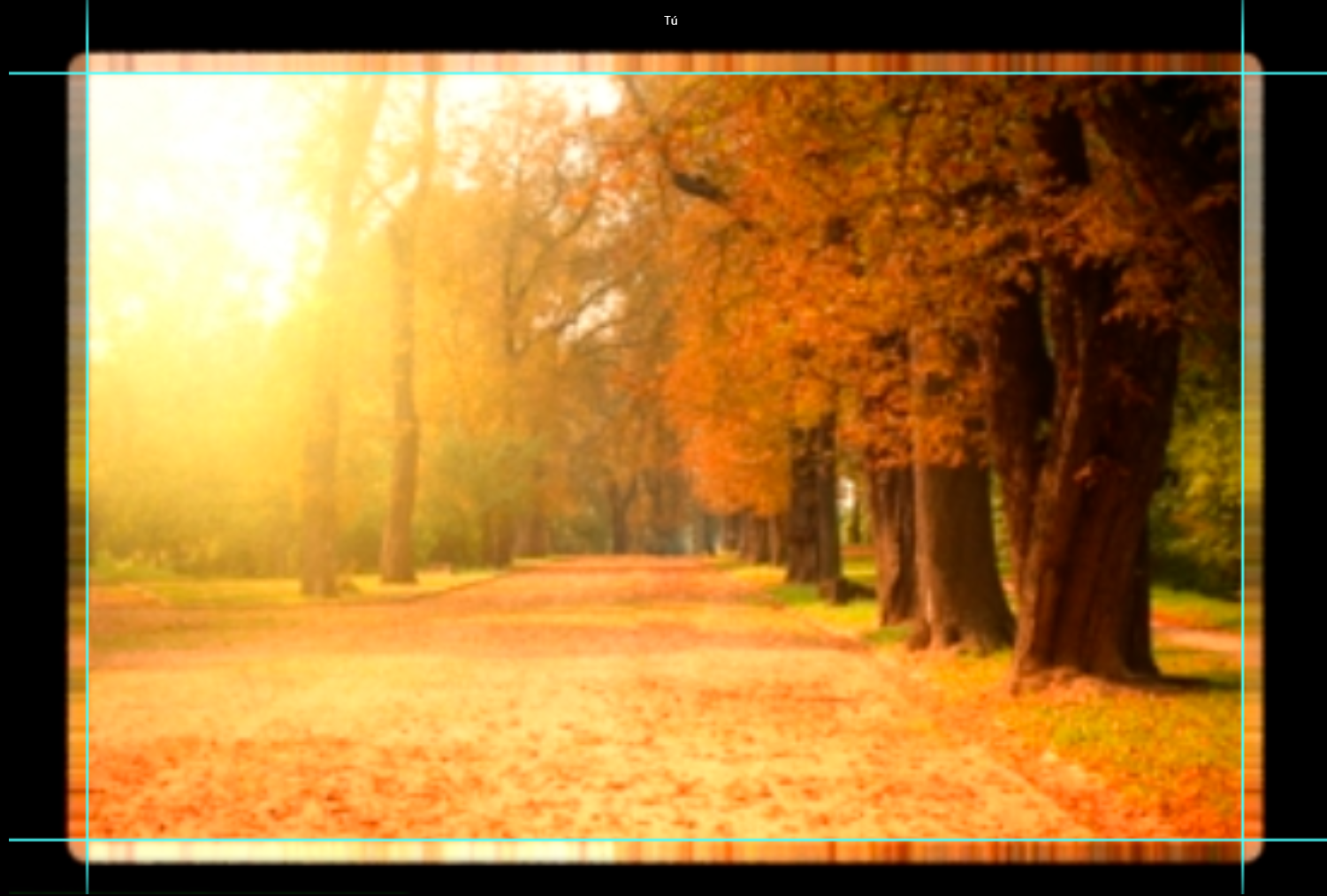

It’s a good practice to leave some margin around the maps to prevent the 3d object from showing undesired bleeding effects.

This image shows an example of a map with some margin. The blue lines have been added to show the separation between the actual texture and the added margin.

Booths

You can load a 3D space with all booths here: https://app.learnbrite.com/dashboard/spaces/visit/spcdb95d8ad85c48698384404

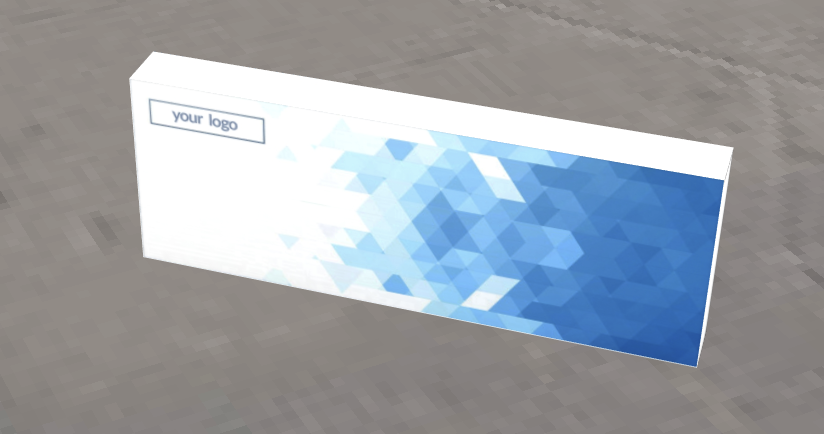

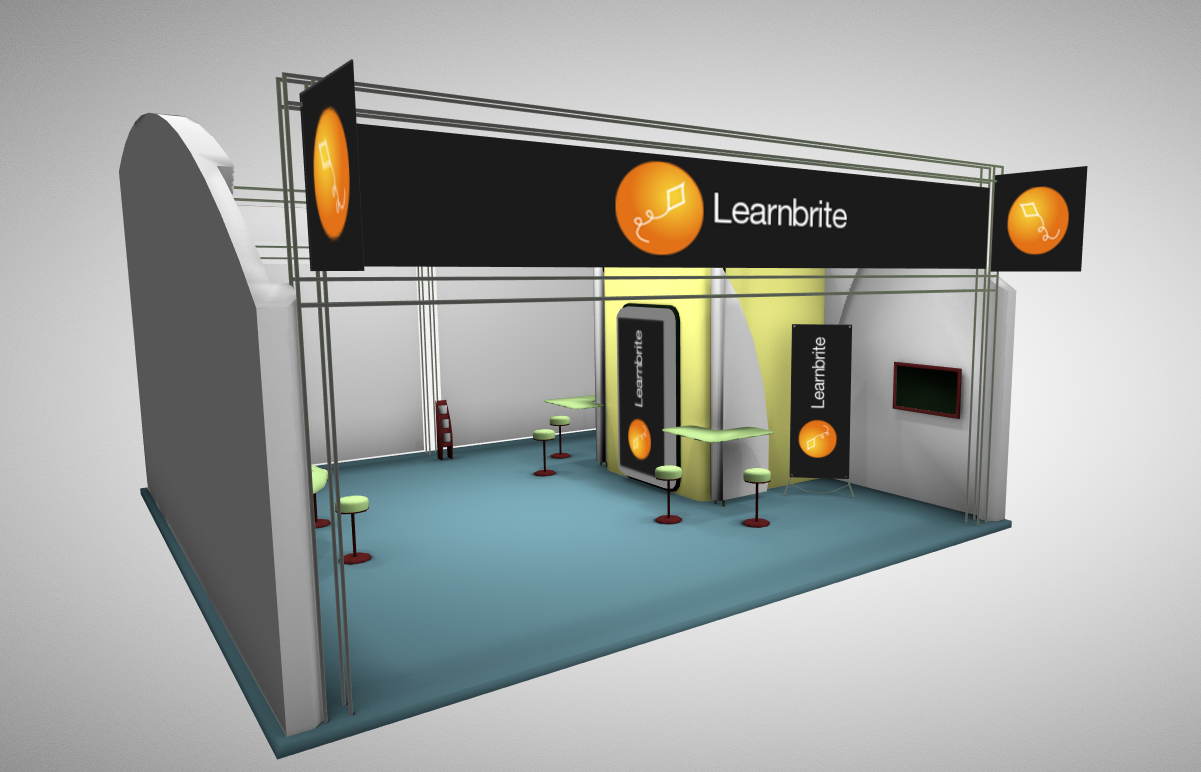

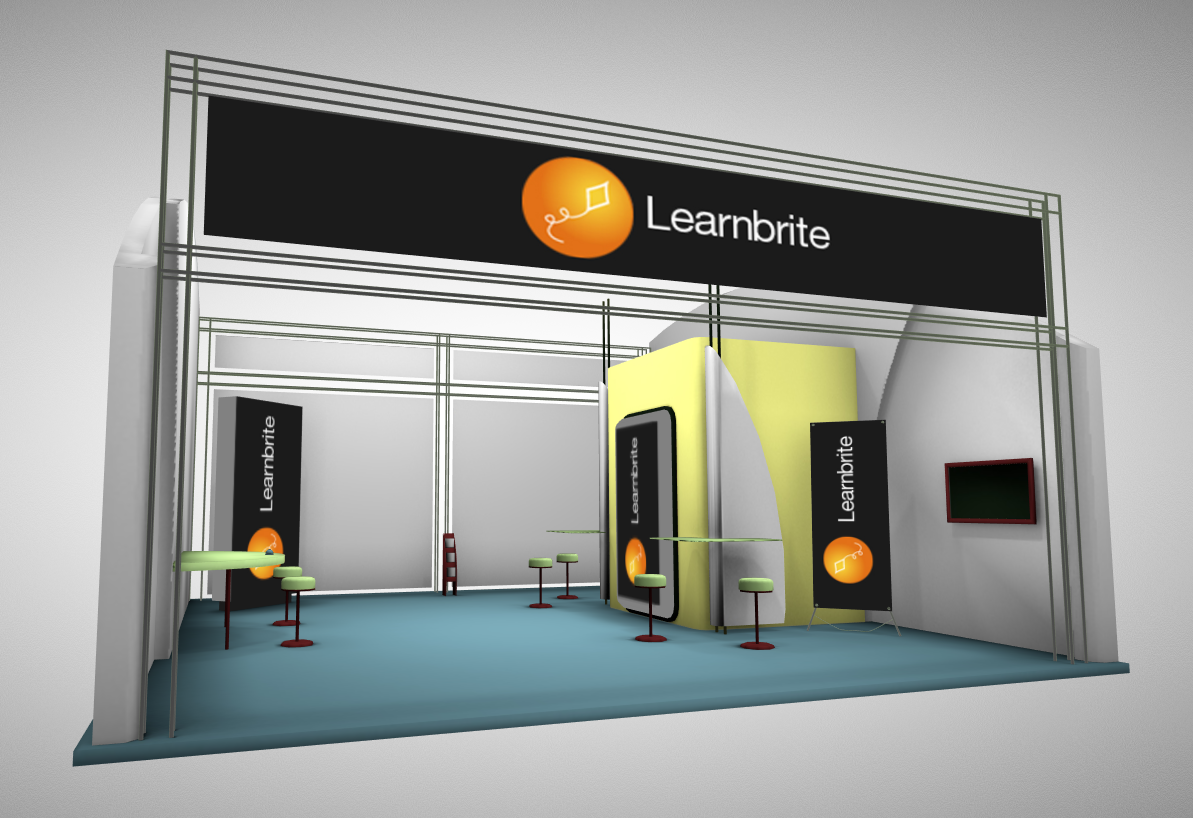

Basic booth

Two versions: With or without flags

Booth URL (with flags)

https://cache.learnbrite.com/_assets_/models/exhibition_booth/optimized_flags/booth_main.gltf

Booth URL (without flags)

https://cache.learnbrite.com/_assets_/models/exhibition_booth/optimized_noflags/booth_main.gltf

Booth branding template

https://cache.learnbrite.com/_assets_/WP_academy/graphics/booths/booth_basic_template.jpg

Map size recommendations (width x height)

1

979 x 147

2

234 x 234

3

290 x 179

4/5

139 x 355

6

212 x 483

6b

207 x 423

7

214 x 426

Approximate polycount: 15795

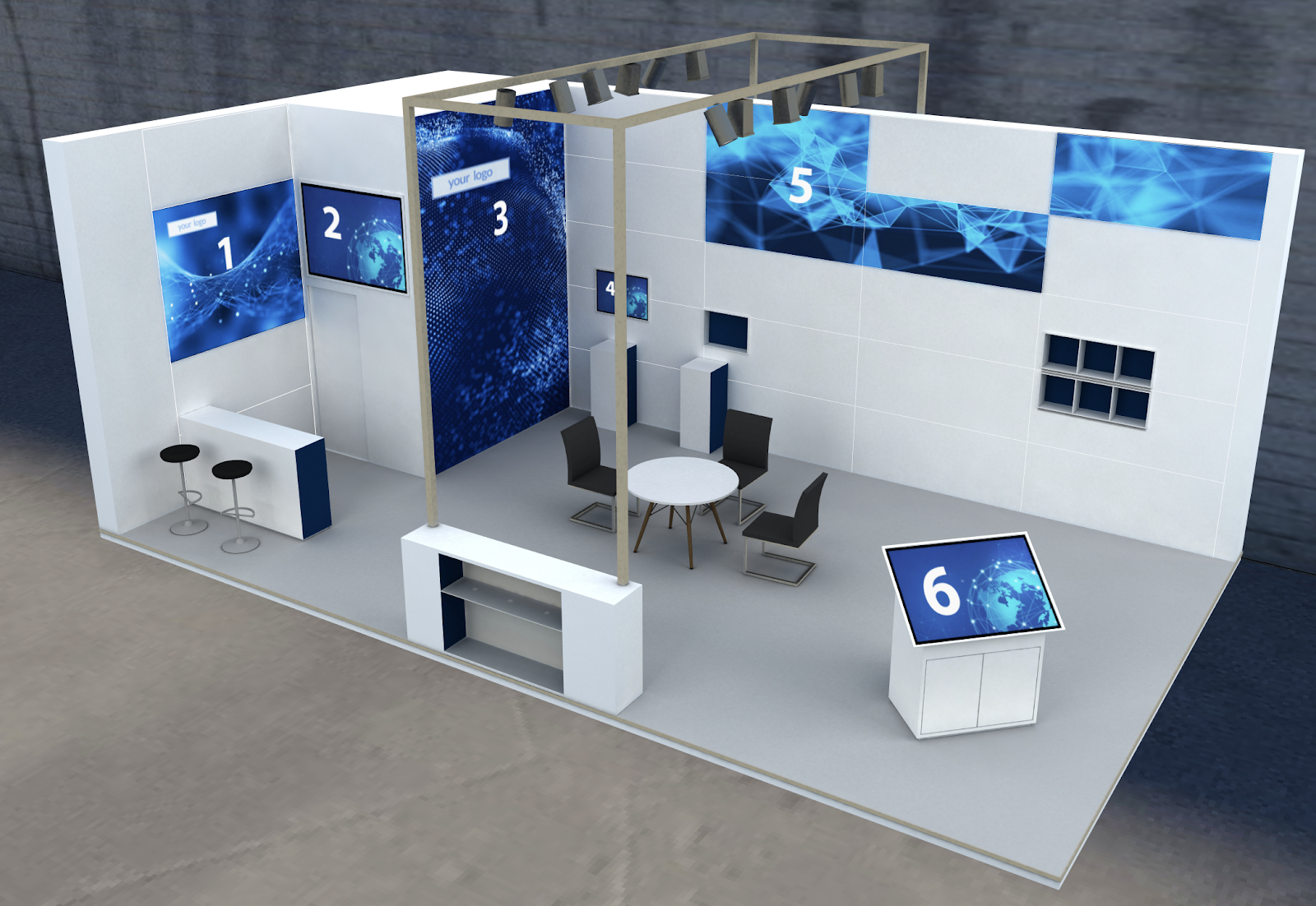

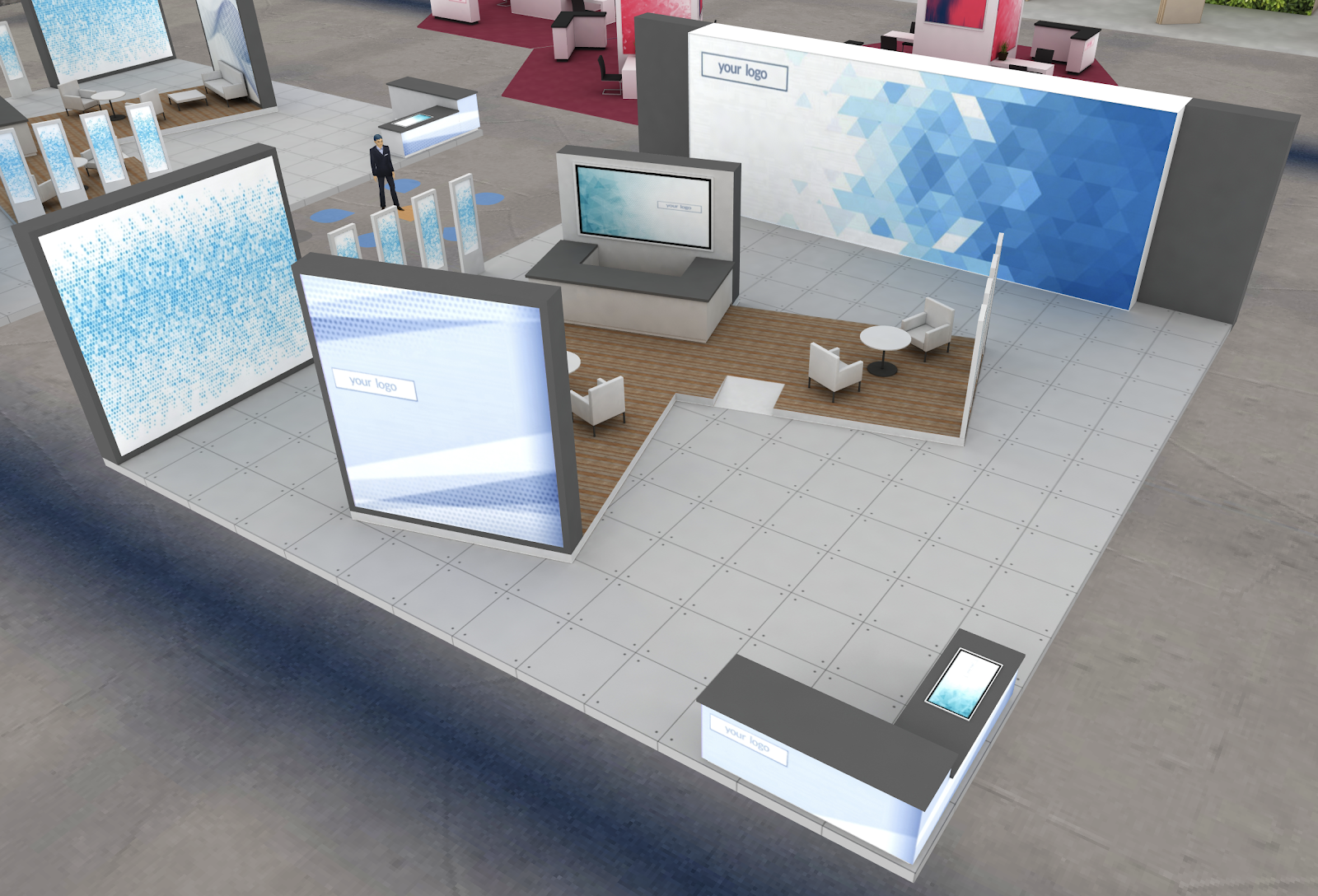

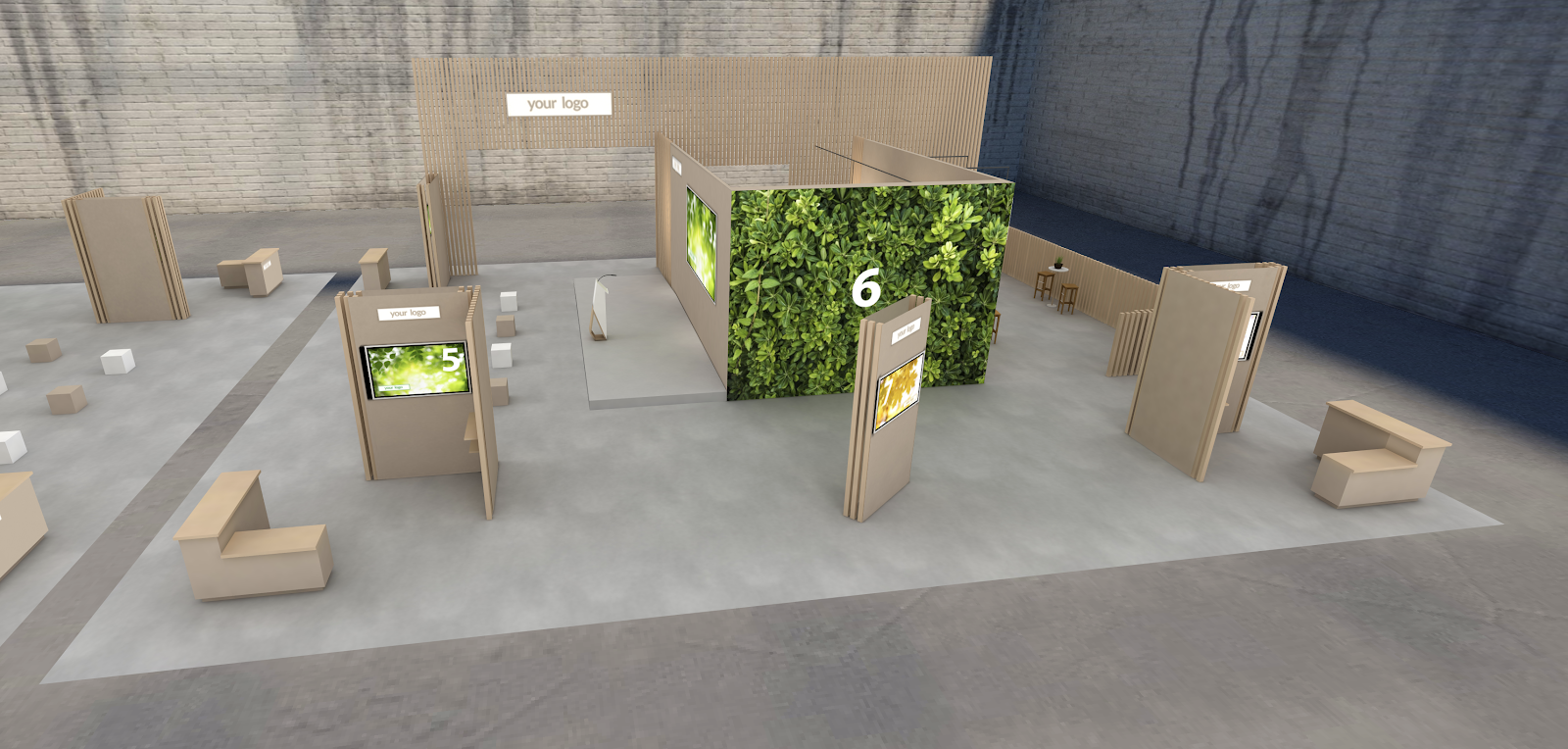

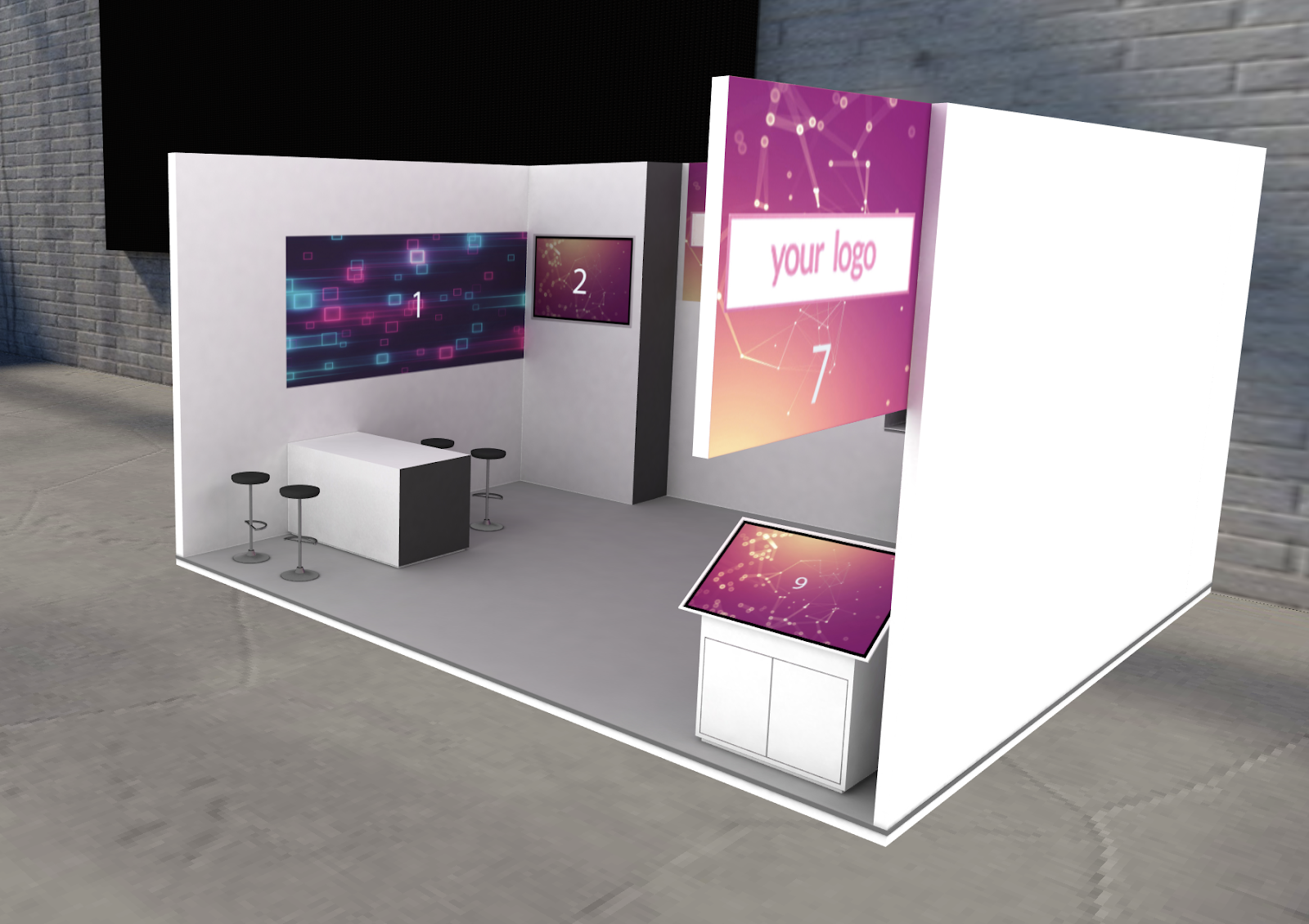

Booth A

Booth URL

https://cache.learnbrite.com/_assets_/models/exhibition_stands/stand_a/Stand_A_.gltf

Booth branding template

https://cache.learnbrite.com/_assets_/WP_academy/graphics/booths/booth_a_template.jpg

Map size recommendations (width x height)

1

364 x 137

2

402 x 137

3/4

478 x 531

5/6

576 x 530

7

510 x 561

8/9

1499 x 556

10

225 x 113

11 to 26

87 x 275

Approximate polycount: 20934

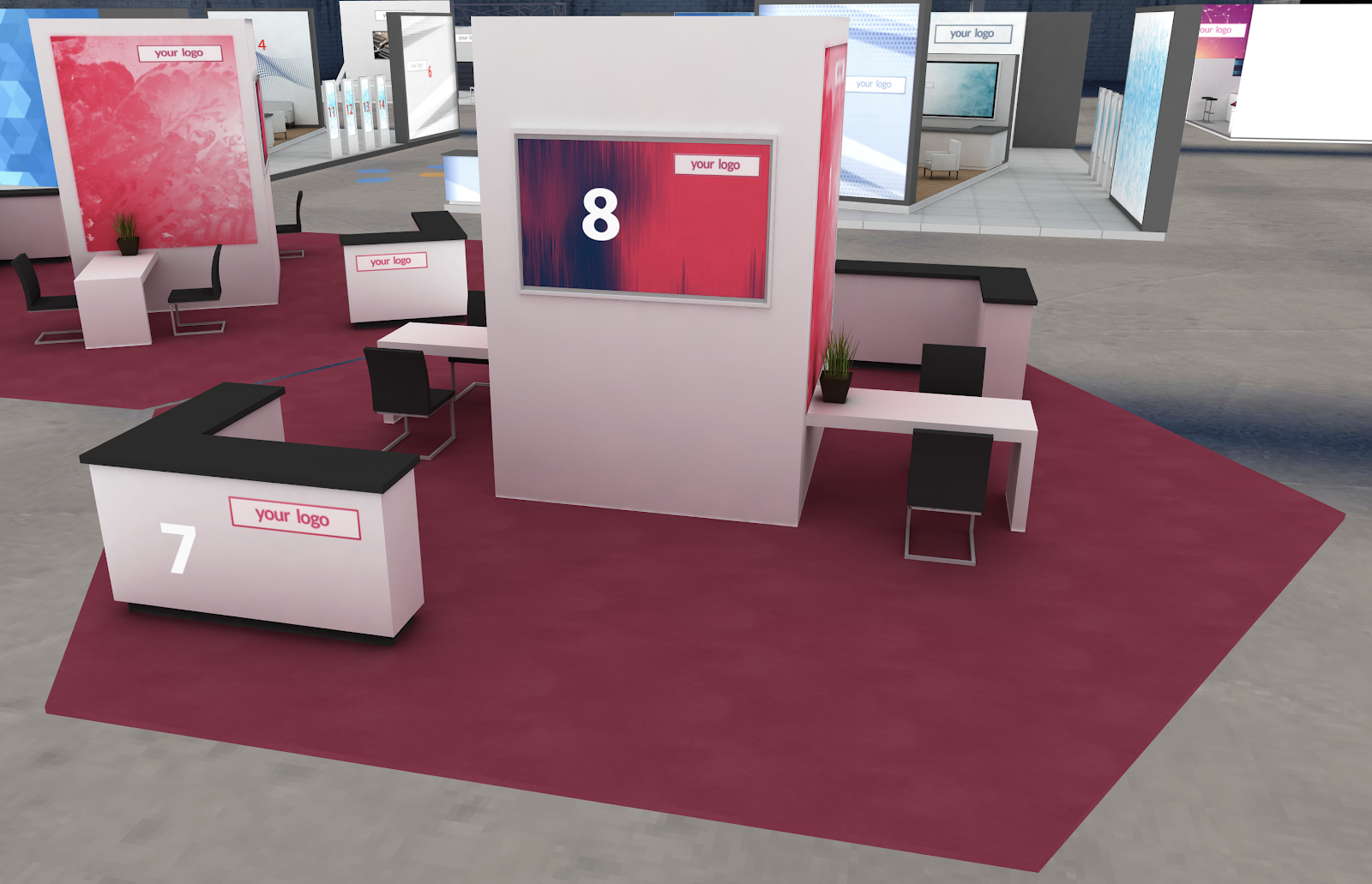

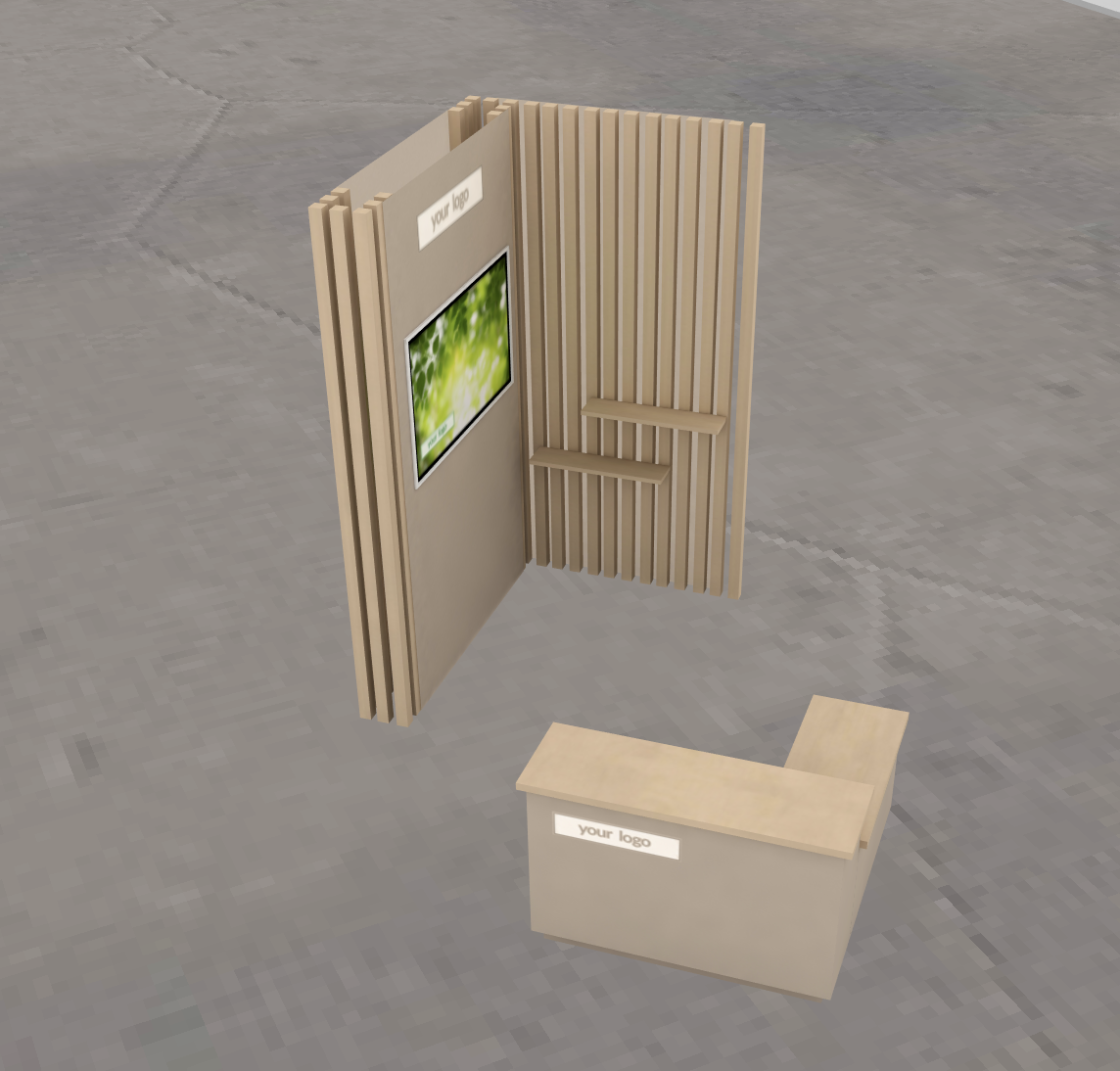

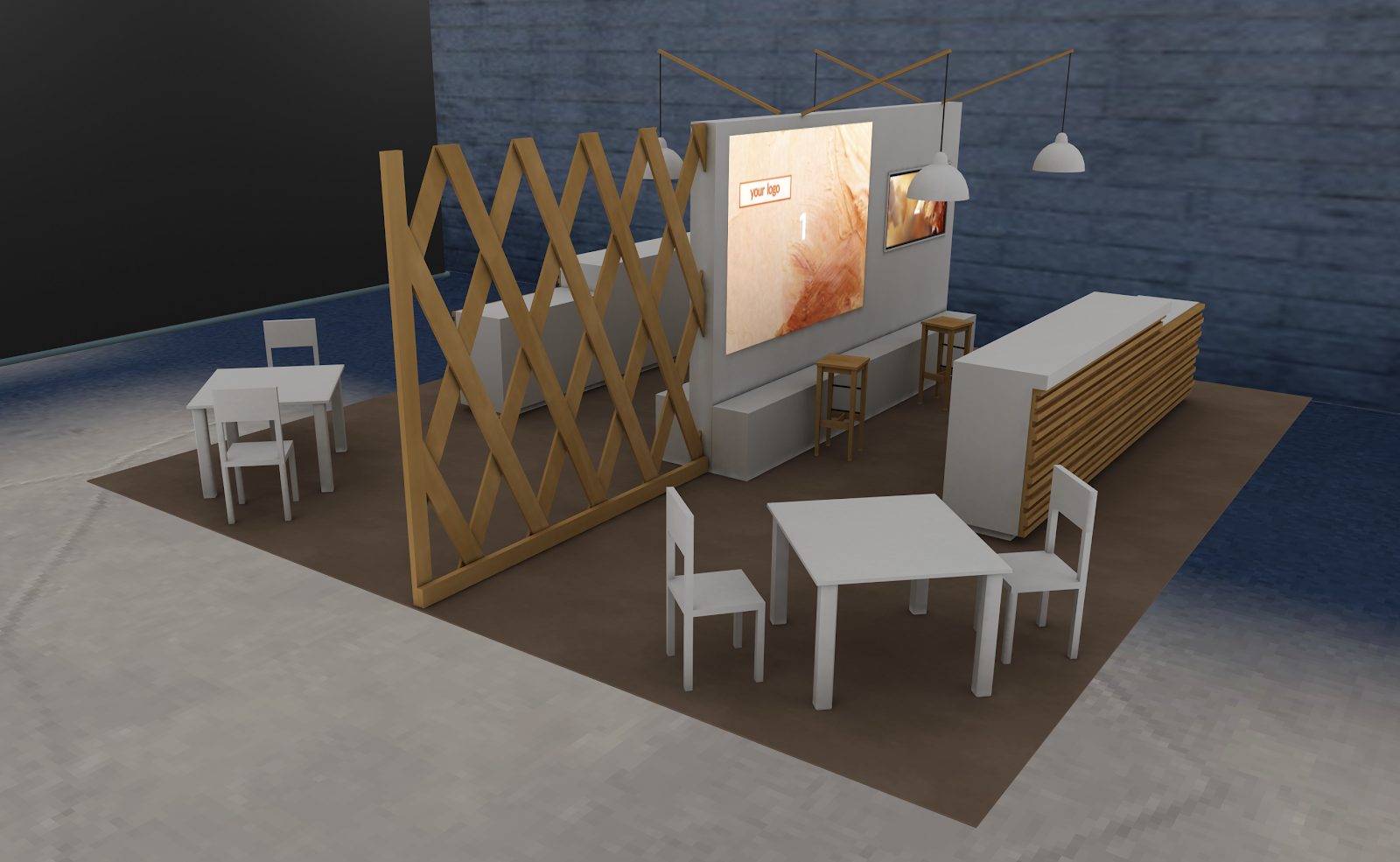

Booth B

Booth URL

https://cache.learnbrite.com/_assets_/models/exhibition_stands/stand_b/Stand_B_.gltf

Booth branding template

https://cache.learnbrite.com/_assets_/WP_academy/graphics/booths/booth_b_template.jpg

Map size recommendations (width x height)

1/3

1351 x 984

2/4

975 x 485 (these are placed rotated 90º)

Approximate polycount: 18198

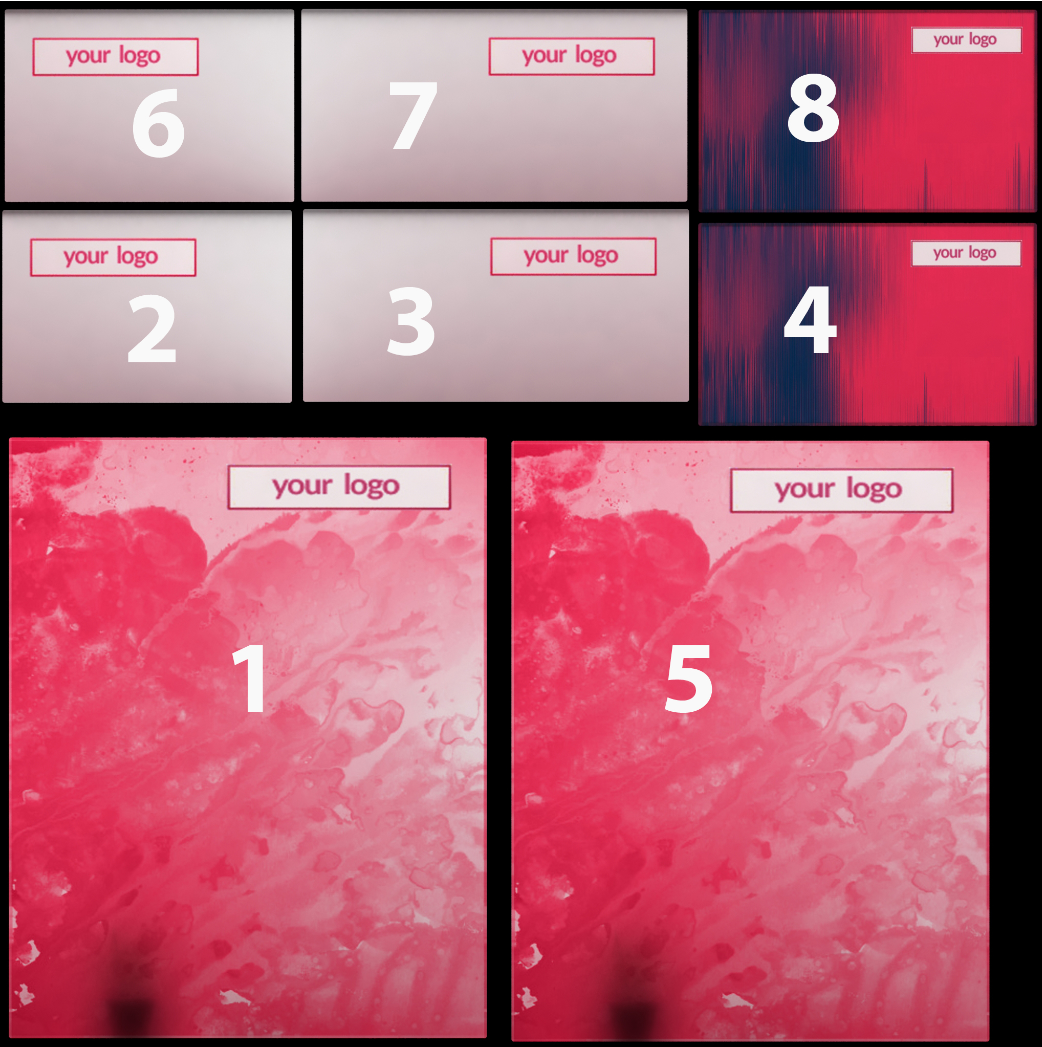

Booth C

Booth URL

https://cache.learnbrite.com/_assets_/models/exhibition_stands/stand_c/Stand_C_.gltf

Booth branding template

https://cache.learnbrite.com/_assets_/WP_academy/graphics/booths/booth_c_template.jpg

Map size recommendations (width x height)

1/5

931 x 1173

2/6

561 x 370

3/7

752 x 370

4/8

664 x 393

Approximate polycount: 6486

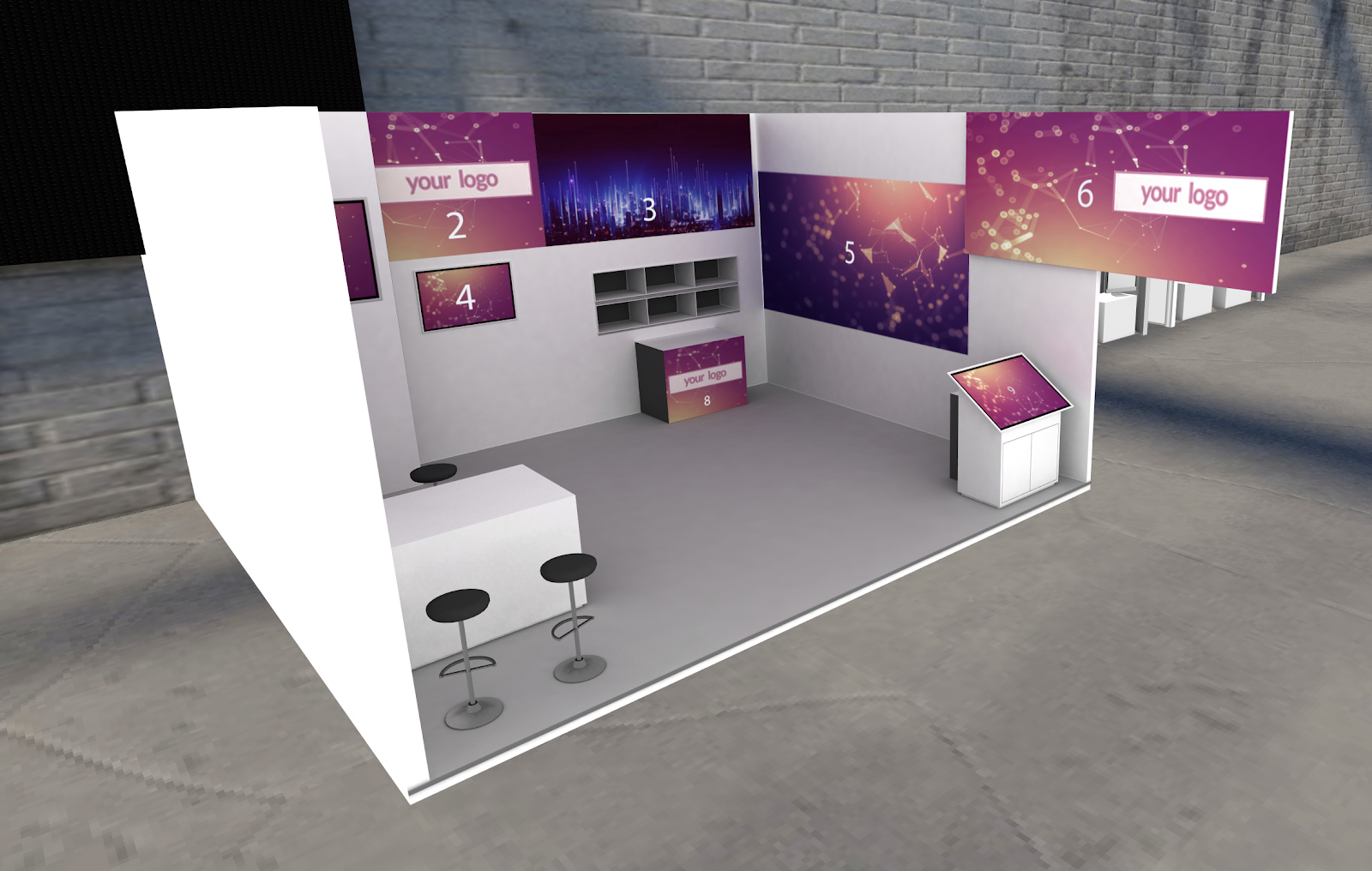

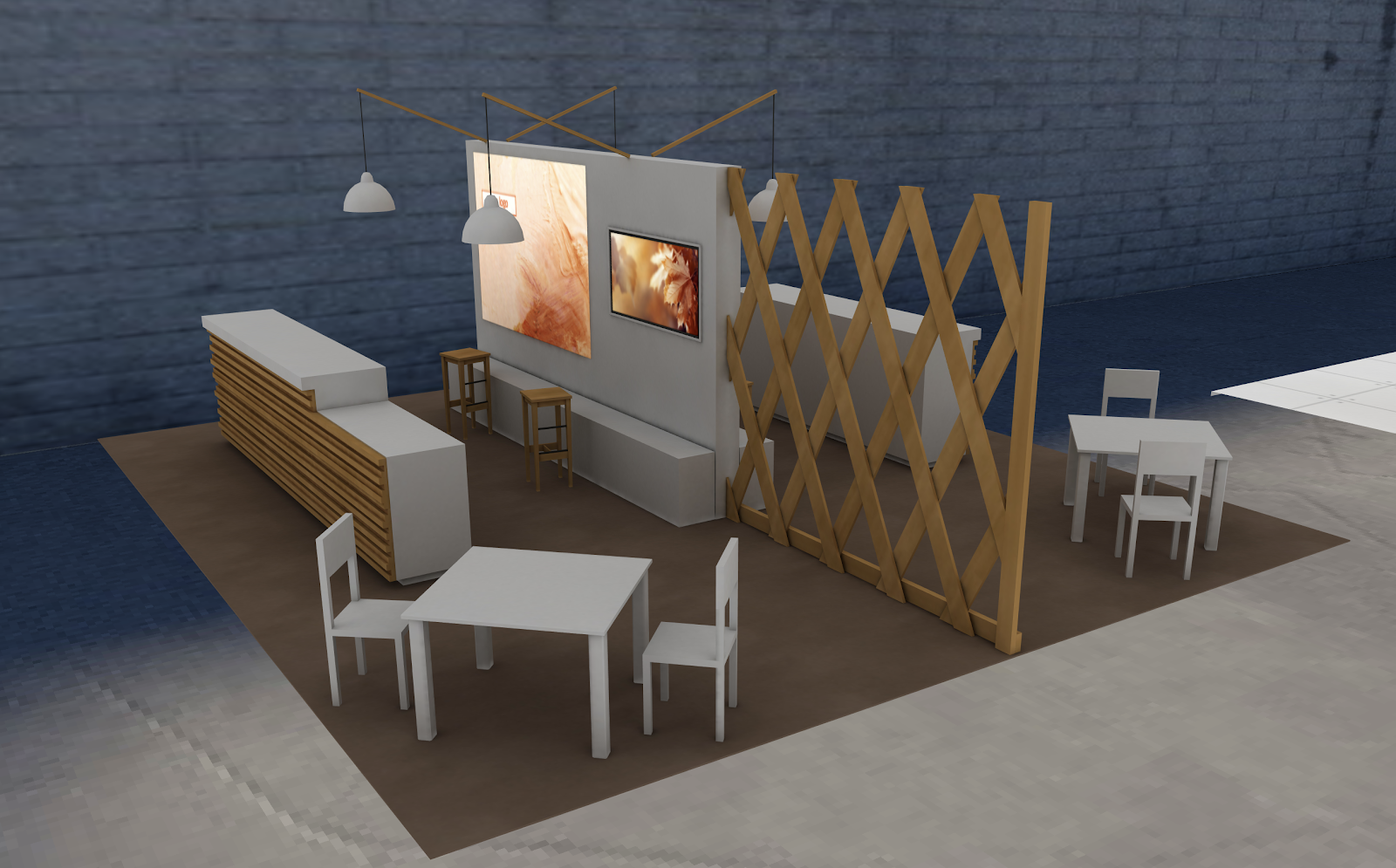

Booth D

Booth URL

https://cache.learnbrite.com/_assets_/models/exhibition_stands/stand_d/Stand_D_.gltf

Booth branding template

https://cache.learnbrite.com/_assets_/WP_academy/graphics/booths/booth_d_template.jpg

Map size recommendations (width x height)

1

720 x 609

2/4

532 x 369

3

1011 x 1500

5

1999 x 547

6

434 x 301

Approximate polycount: 18768

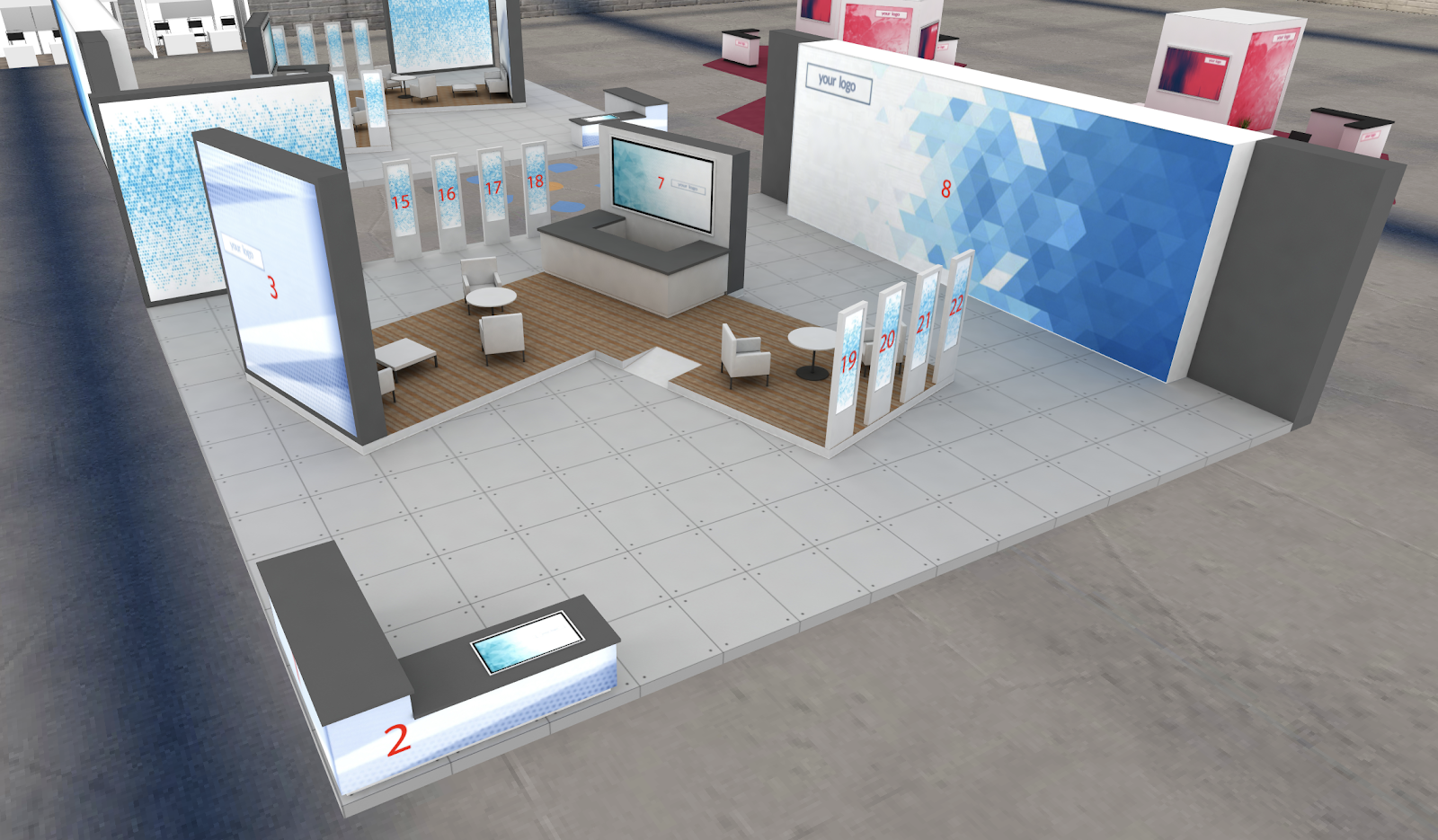

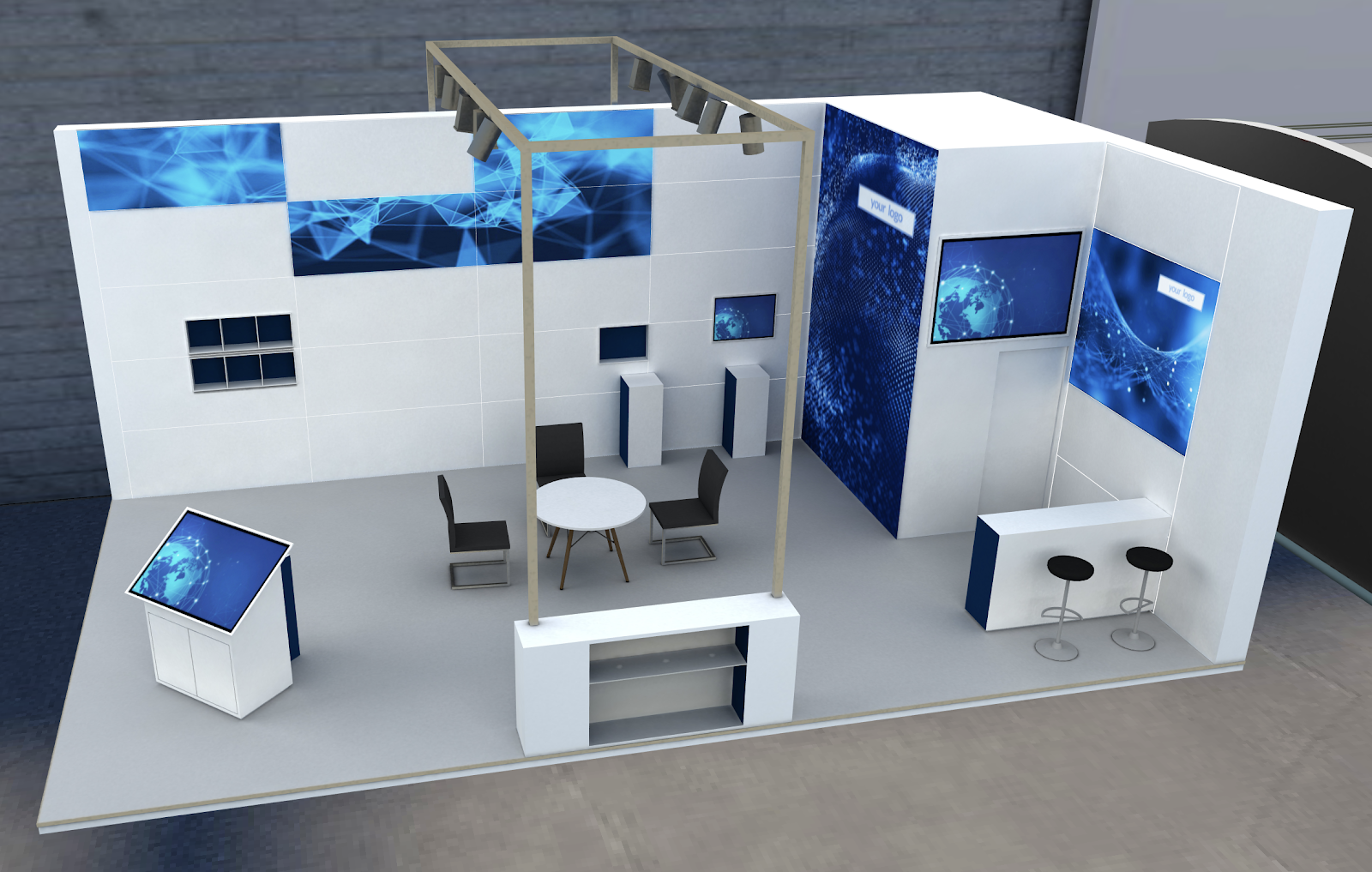

Booth E

Booth URL

https://cache.learnbrite.com/_assets_/models/exhibition_stands/stand_e/Stand_E_01_.gltf

Booth branding template

https://cache.learnbrite.com/_assets_/WP_academy/graphics/booths/booth_e_template.jpg

Map size recommendations (width x height)

1

523 x 322

3

1035 x 527

4/4B

471 x 283

2/5/7/8

499 x 284

6

962 x 726

9

202 x 303

10

419 x 279

11/12/13

202 x 202

14/15

304 x 203

16 to 22

220 x 220

23

599 x 363

“your logo”

1054 x 233

Approximate polycount: 40734

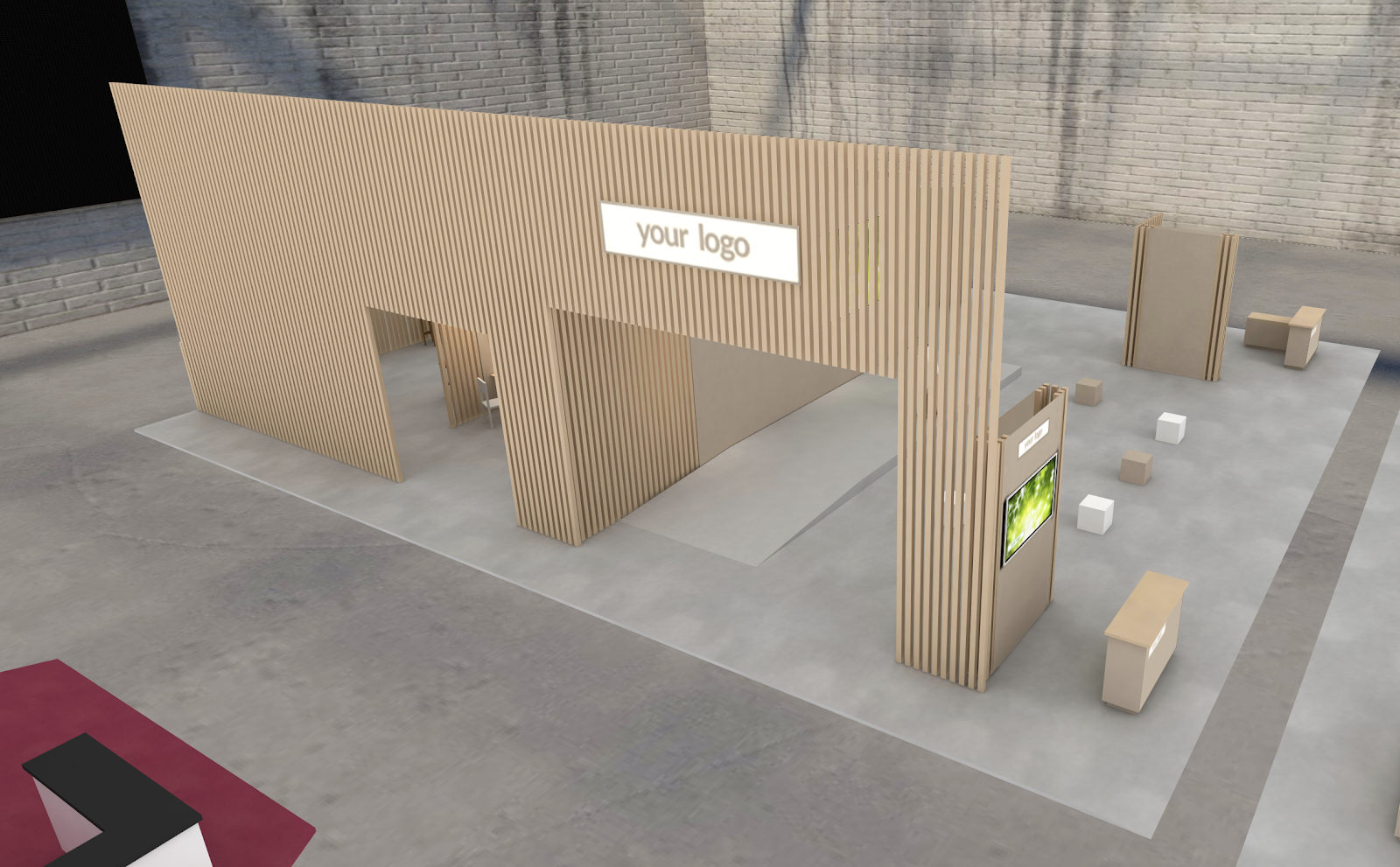

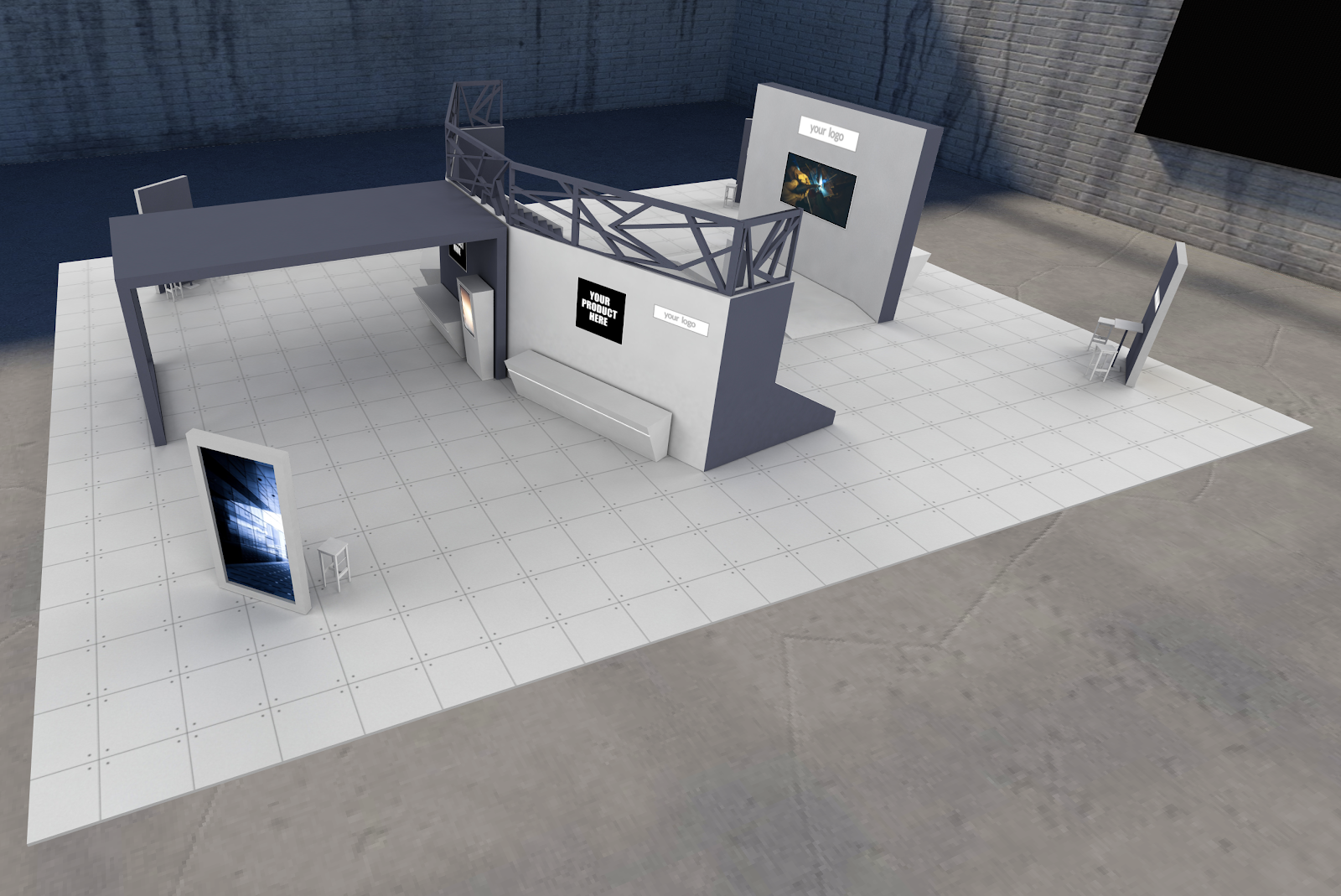

Booth F

Booth URL

https://cache.learnbrite.com/_assets_/models/exhibition_stands/stand_f/Stand_F_.gltf

Booth branding template

https://cache.learnbrite.com/_assets_/WP_academy/graphics/booths/booth_f_template.jpg

Map size recommendations (width x height)

1/3/10/11

461 x 914

4/2

1000 x 511

5

831 x 433

“your logo”

845 x 192

6/7/8

463 x 405

9

320 x 548



Approximate polycount: 17460

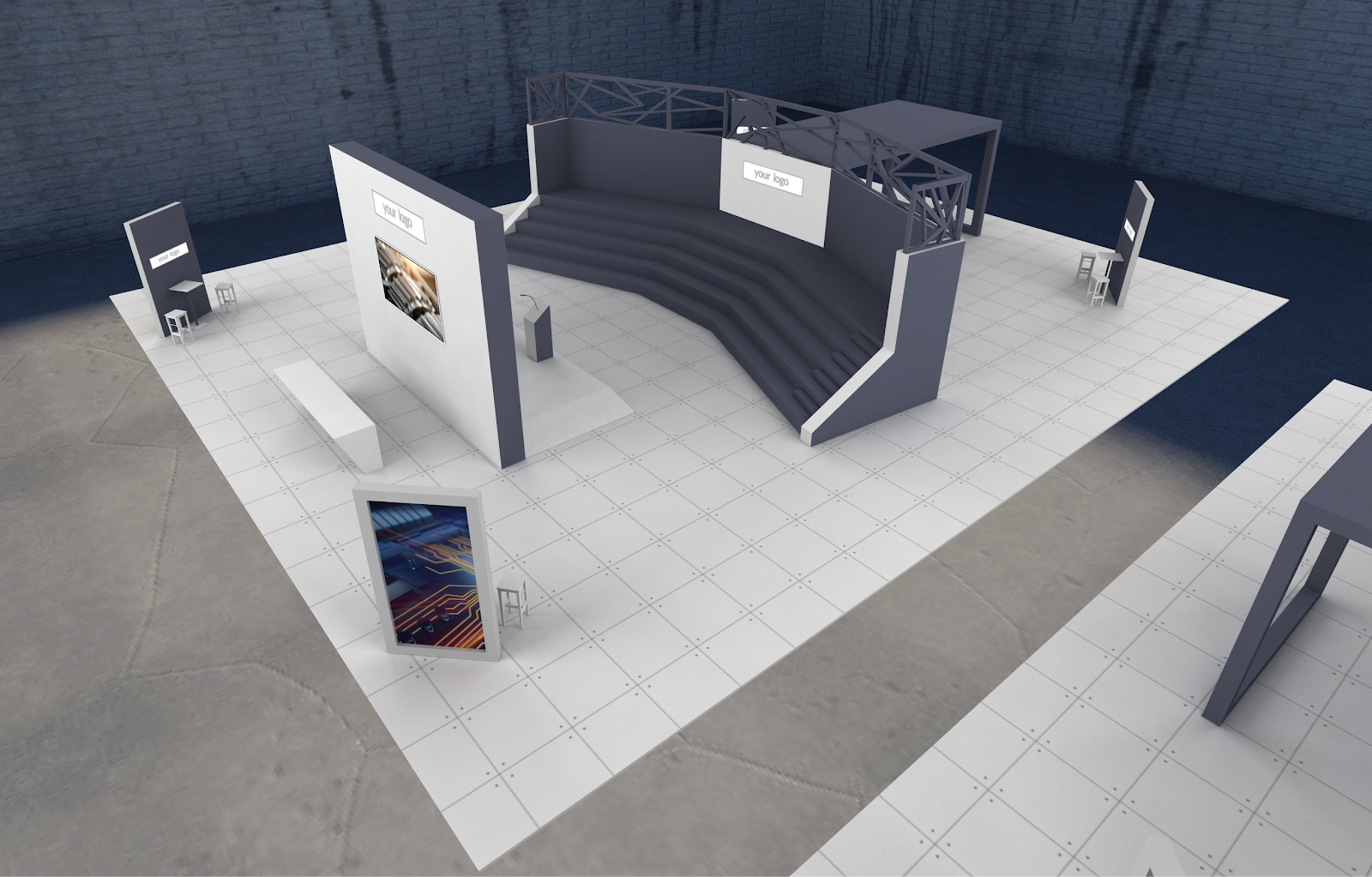

Booth G

Booth URL

https://cache.learnbrite.com/_assets_/models/exhibition_booth/A/Stand_Titled_A_.gltf

Booth branding template

https://cache.learnbrite.com/_assets_/WP_academy/graphics/booths/booth_g_template.jpg

Map size recommendations (width x height)

1

1240 x 505

2

450 x 320

3

600 x 512

4

993 x 512

5

334 x 216

6

1320 x 642

7

1293 x 553

8

678 x 554

9

928 x 736

10

1038 x 720

“your logo”

845 x 192

Approximate polycount: 10401

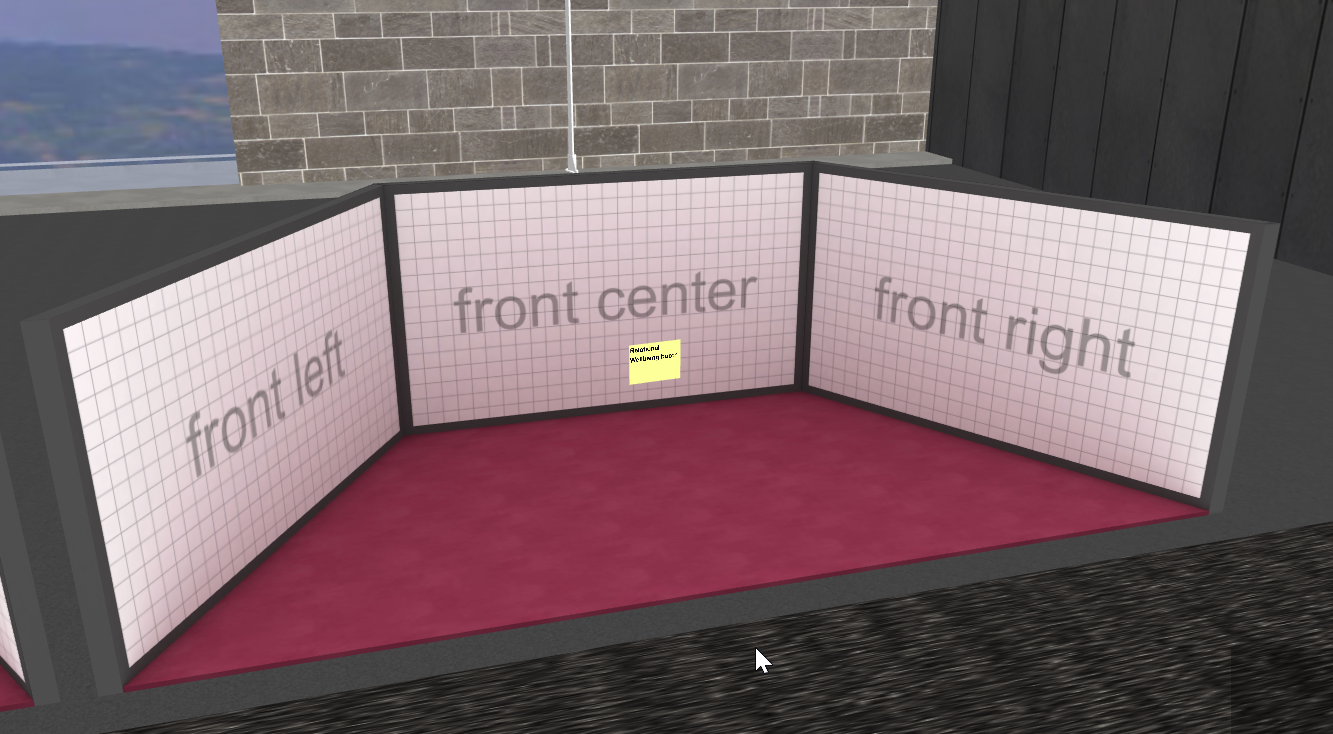

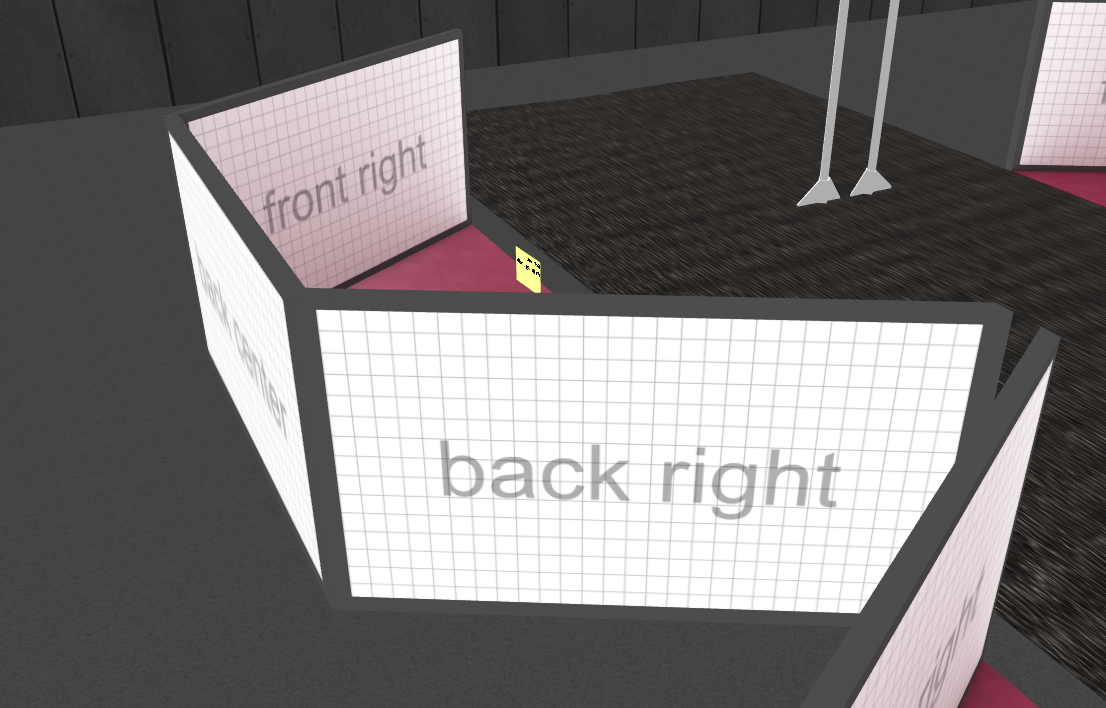

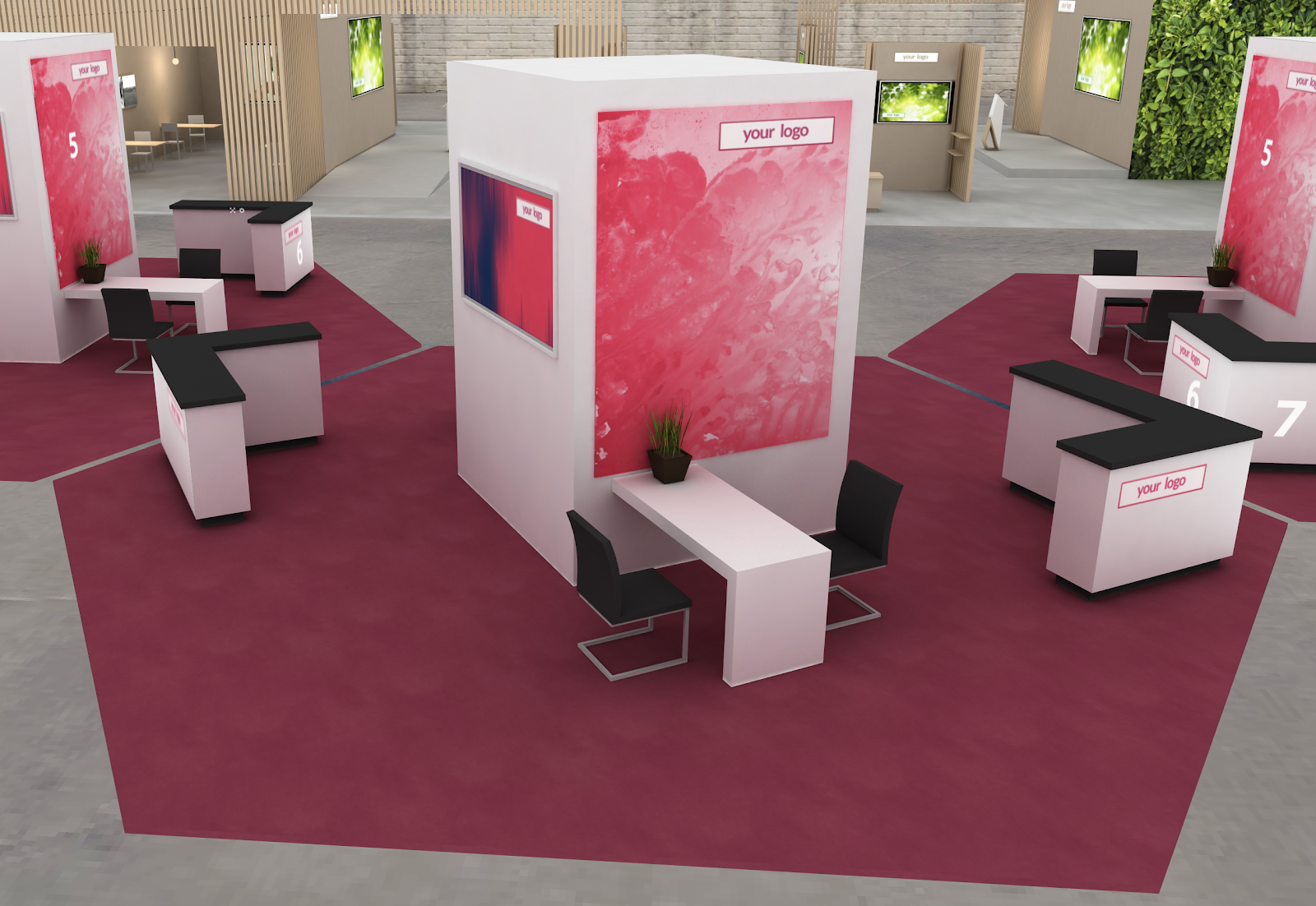

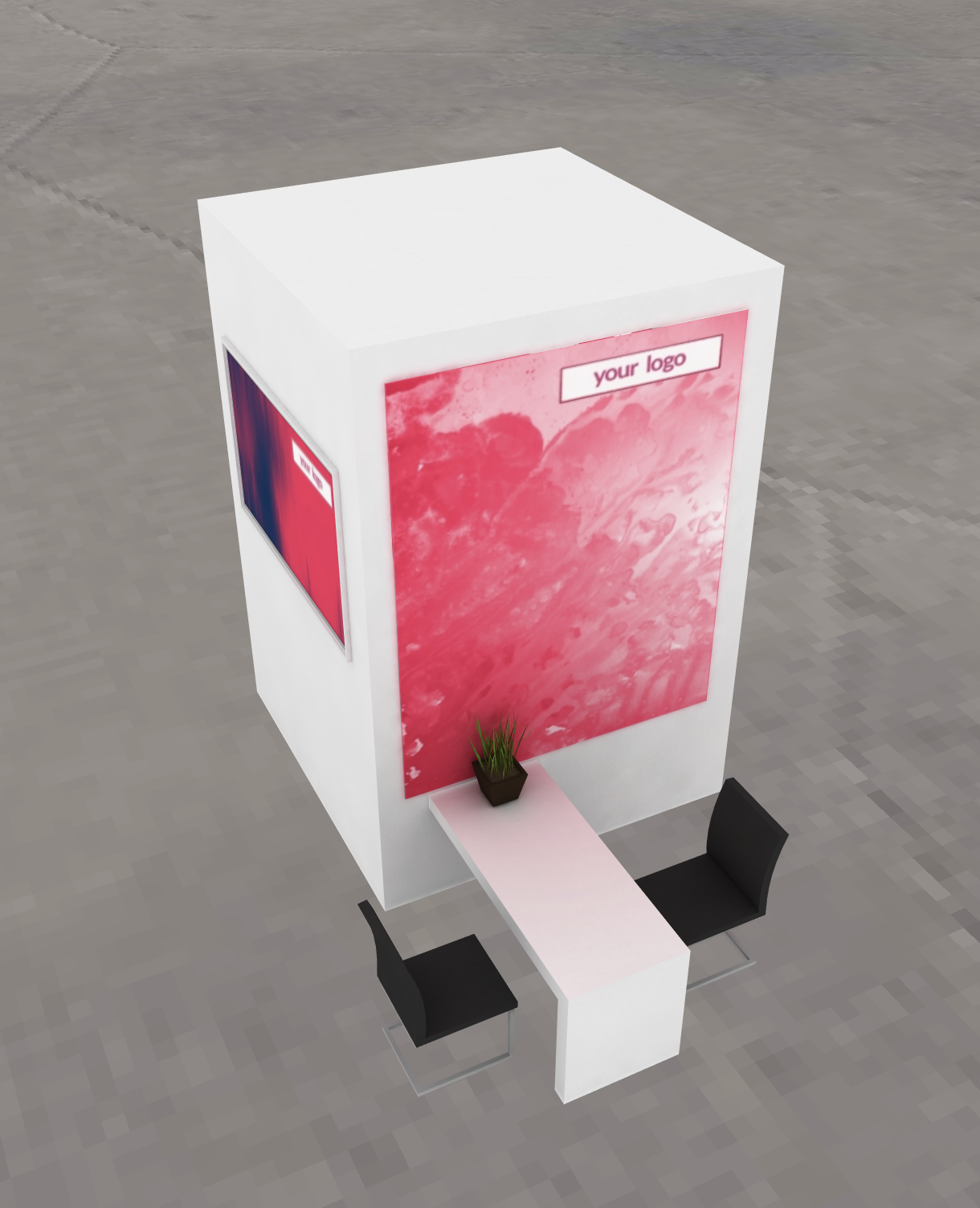

3 Sided Hexagonal Booth

Booth URL

https://cache.learnbrite.com/_assets_/models/exhibition_stands/hexagonal_booth/Hexagonal booth.gltf

Booth branding template

https://cache.learnbrite.com/_assets_/models/exhibition_stands/hexagonal_booth/Hexagonal booth.jpg

Numbered: https://cache.learnbrite.com/_assets_/models/exhibition_stands/hexagonal_booth/Hexagonal booth numbered.jpg

White background: https://cache.learnbrite.com/_assets_/models/exhibition_stands/hexagonal_booth/Hexagonal booth white.jpg

Map size recommendations (width x height)

1-6

2031 x 1152

Approximate polycount: 2000

Metadata Override

{"materialPropertiesOverrides":[{"materialNames":["Hexagonal booth"],"overrides":{"map":"TEXTURE_URL"}}]}

Modules

These are additional items that can be imported in the booths.

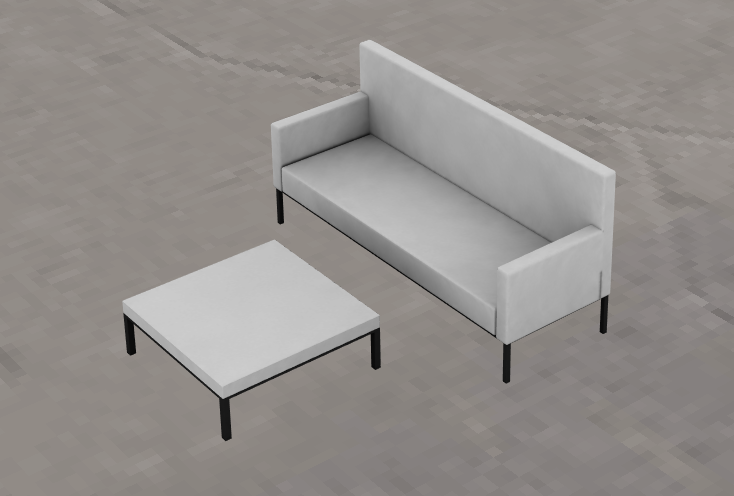

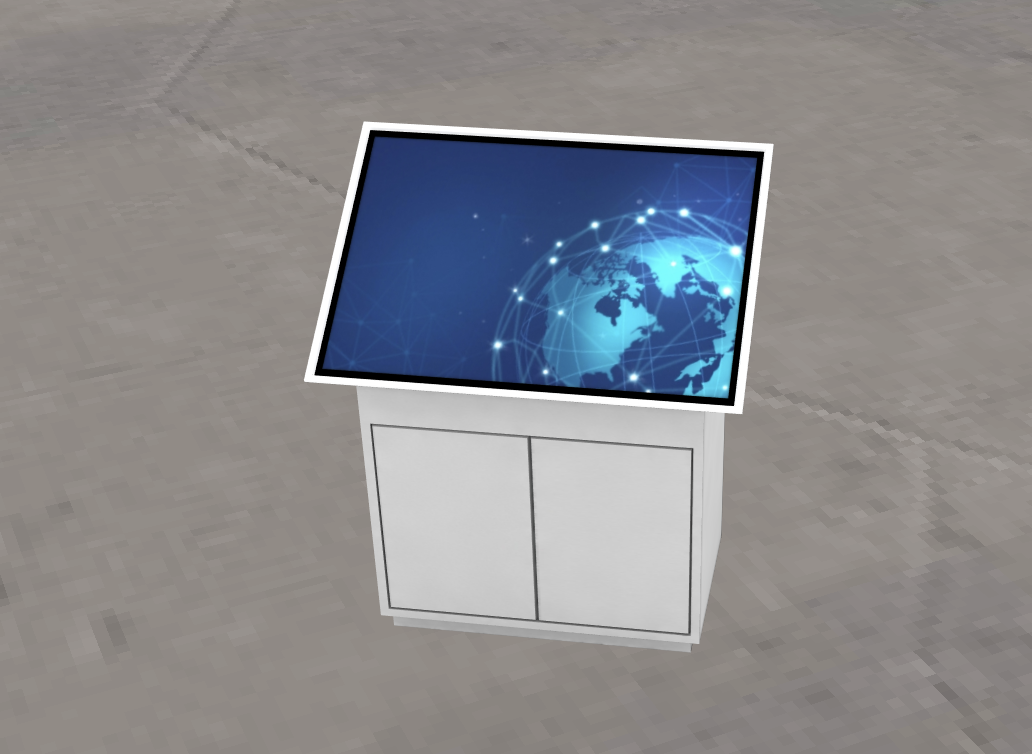

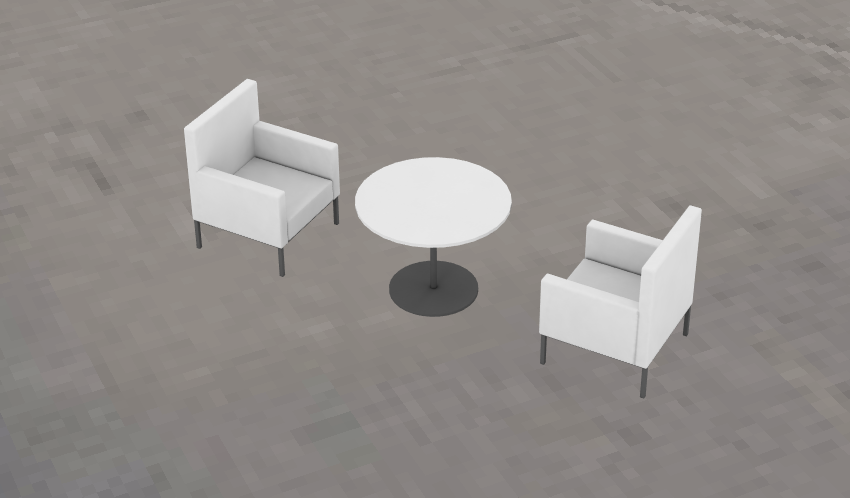

Stand A Armchair table

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/A/Armchair_table_A_/Armchair_table_A_.gltf

Stand A Counter

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/A/Counter_A_C_/Counter_A_C_.gltf

Texture: https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/A/Counter_A_C_/Counter_A_C_VRayCompleteMap.jpg

metadata:

{"materialPropertiesOverrides":[{"materialNames":["Counter_A_C_"],"overrides":{"map":"TEXTURE_URL"}}]}

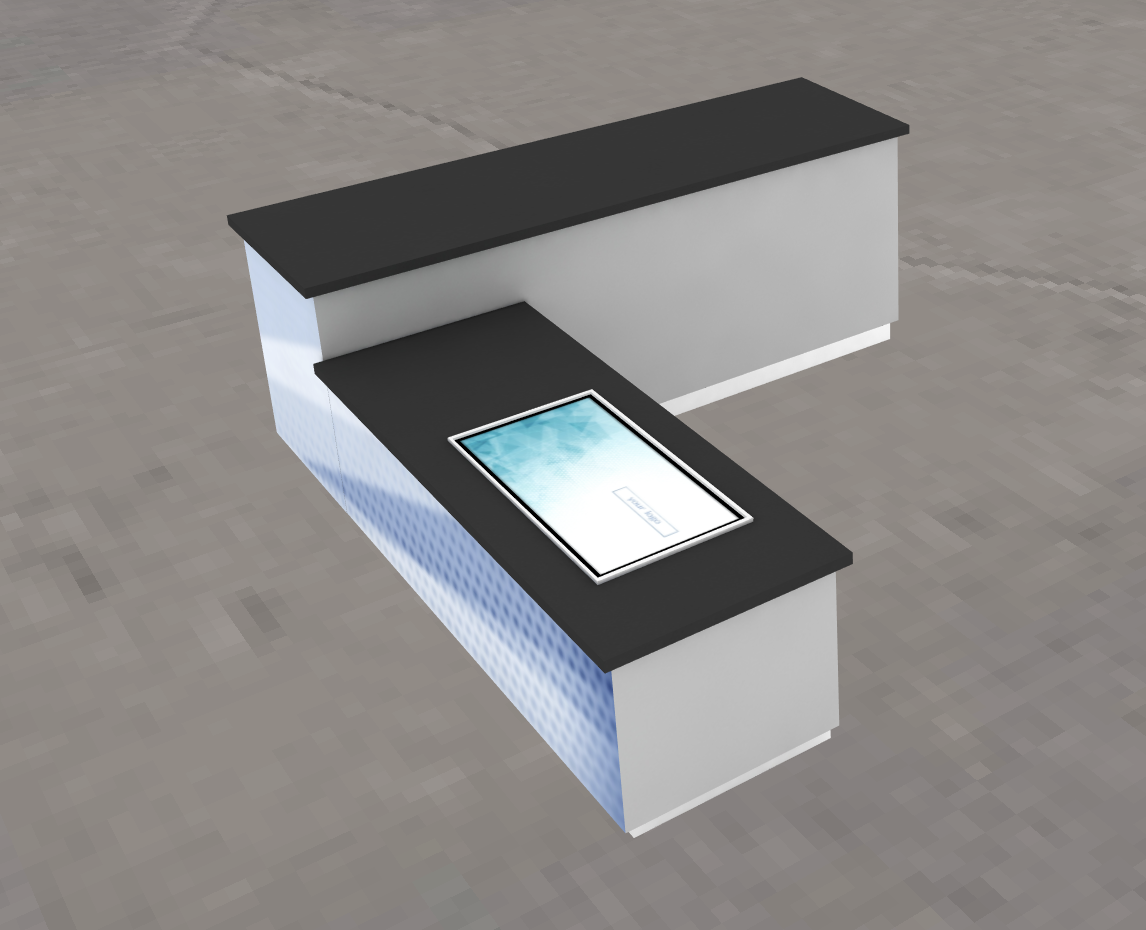

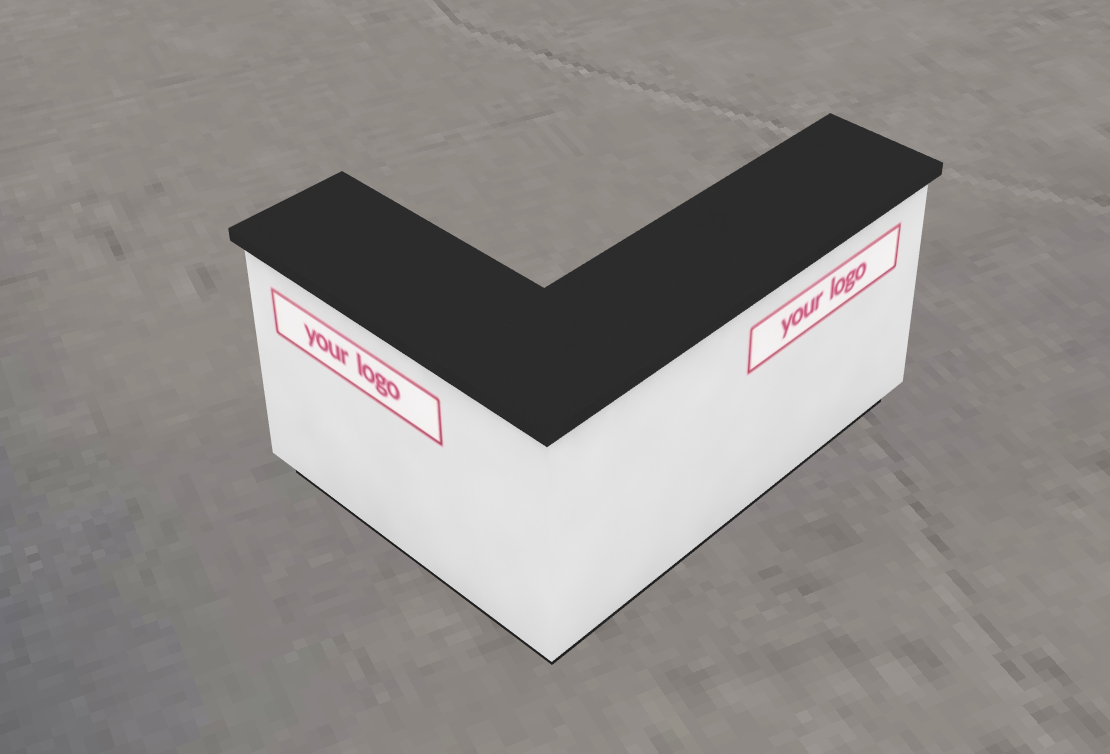

Stand A Counter L

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/A/Counter_A_L_/Counter_A_L_.gltf

Texture: https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/A/Counter_A_L_/Counter_A_L_VRayCompleteMap.jpg

metadata:

{"materialPropertiesOverrides":[{"materialNames":["Counter_A_L_"],"overrides":{"map":"TEXTURE_URL"}}]}

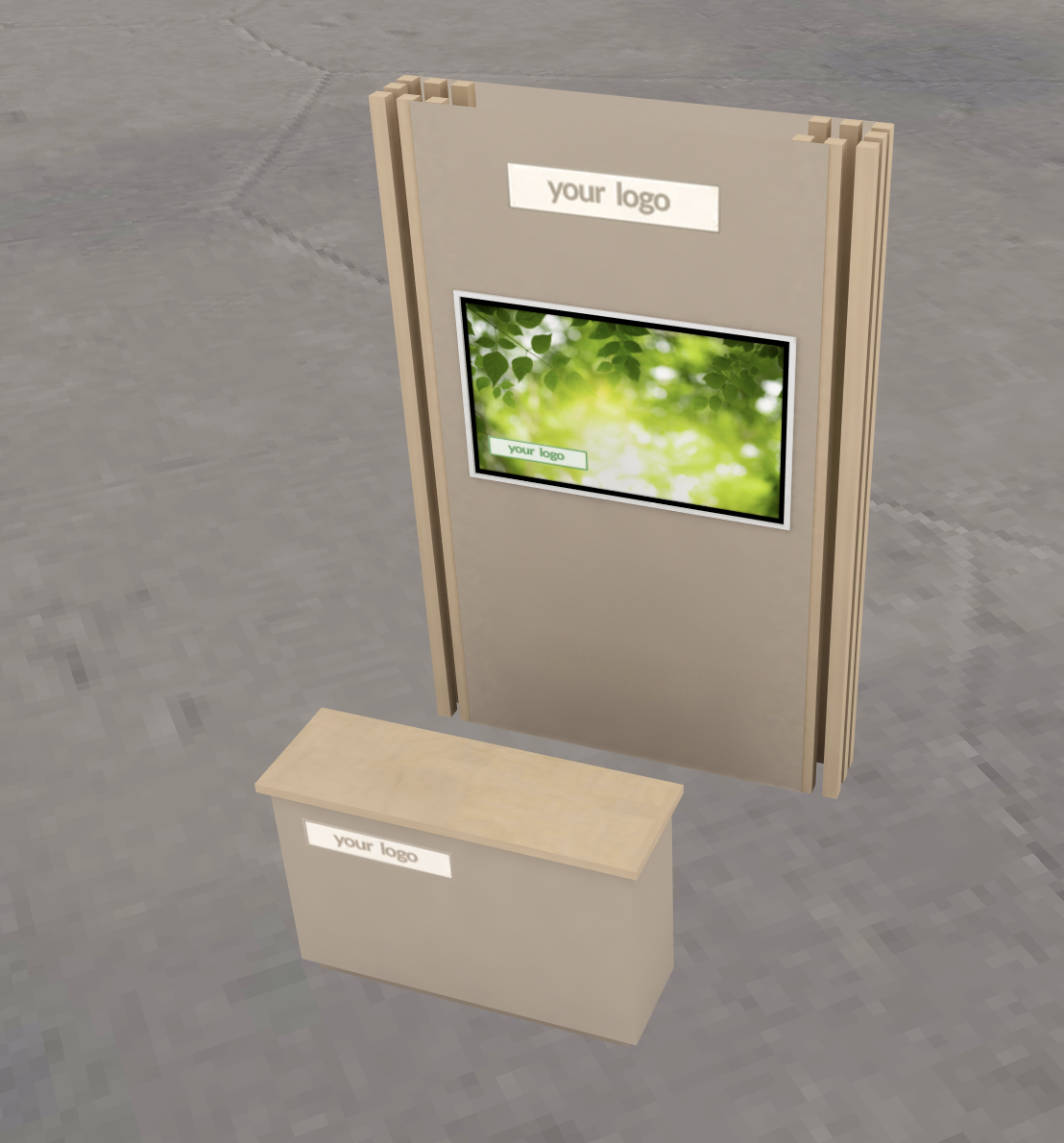

Stand A Totem 1

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/A/Graphic_Totem_A01_/Graphic_Totem_A01_.gltf

Texture:

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/A/Graphic_Totem_A01_/Graphic_Totem_A01_VRayCompleteMap.jpg

metadata:

{"materialPropertiesOverrides":[{"materialNames":["Graphic_Totem_A01_"],"overrides":{"map":"TEXTURE_URL"}}]}

Stand A Totem 2

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/A/Graphic_Totem_A02_/Graphic_Totem_A02_.gltf

Texture:

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/A/Graphic_Totem_A02_/Graphic_Totem_A02_VRayCompleteMap.jpg

metadata:

{"materialPropertiesOverrides":[{"materialNames":["Graphic_Totem_A02_"],"overrides":{"map":"TEXTURE_URL"}}]}

Stand A Totem 3

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/A/Graphic_Totem_A03_/Graphic_Totem_A03_.gltf

Texture:

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/A/Graphic_Totem_A03_/Graphic_Totem_A03_VRayCompleteMap.jpg

metadata:

{"materialPropertiesOverrides":[{"materialNames":["Graphic_Totem_A03_"],"overrides":{"map":"TEXTURE_URL"}}]}

Map size recommendations (width x height)

Sides 1 & 2 – 503 x 189

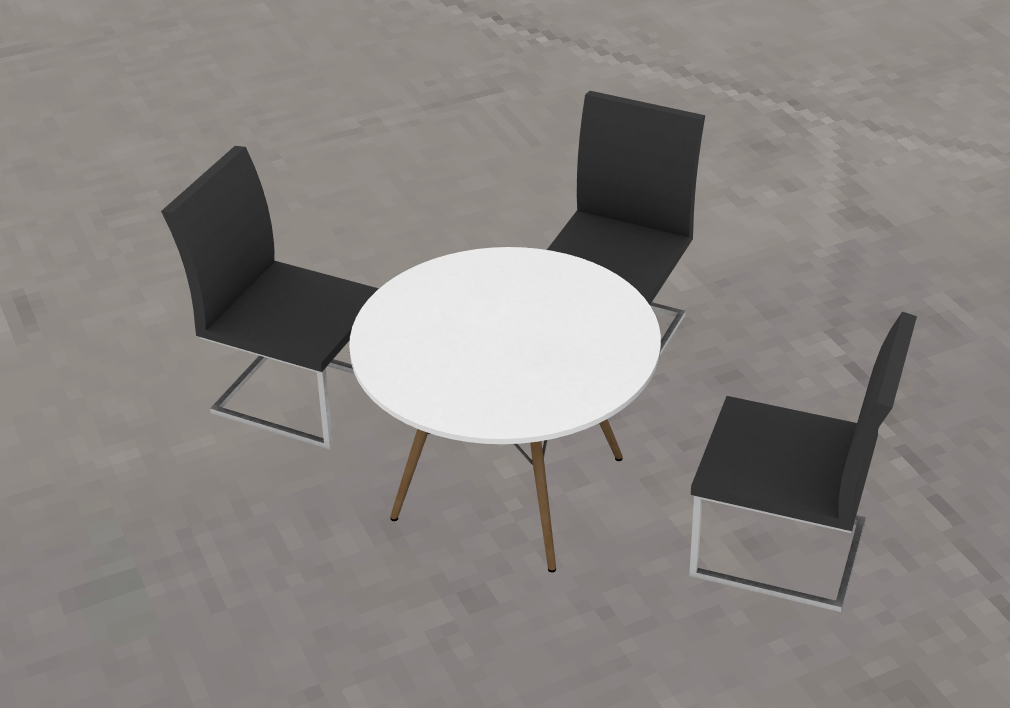

Stand A Table round chairs

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/A/Table_A_Round_Chairs_/Table_A_Round_Chairs_.gltf

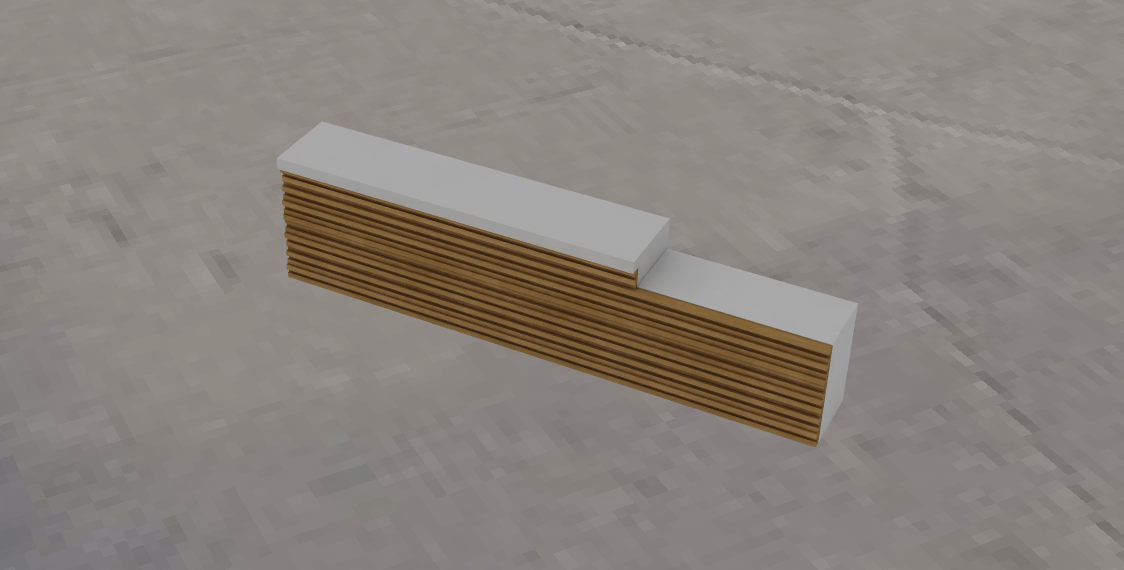

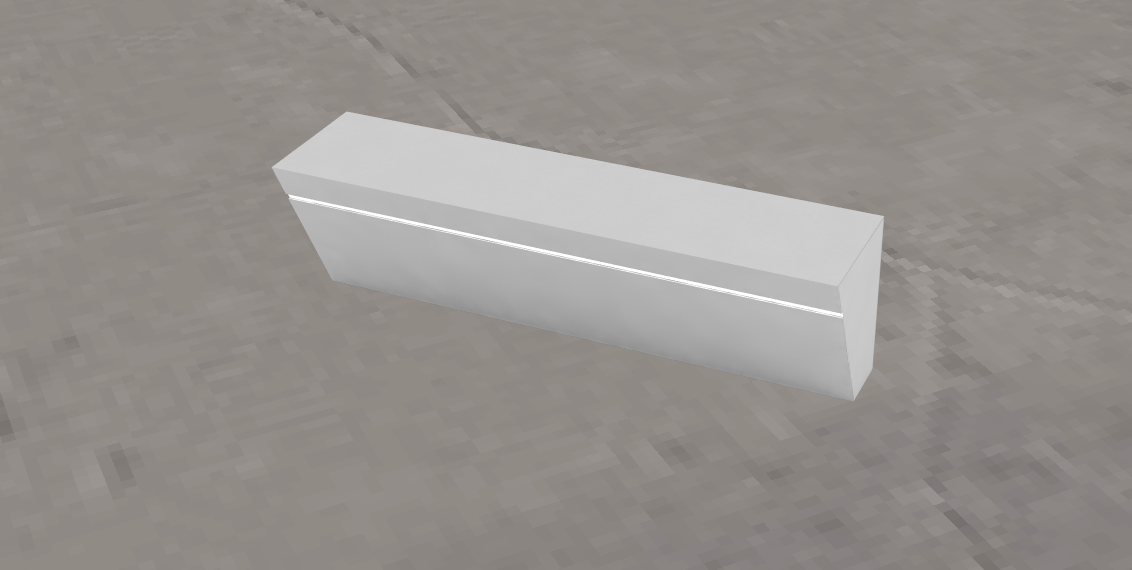

Stand B Counter

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/B/Counter_B_/Counter_B_.gltf

Stand B Stool

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/B/Stool_B_/Stool_B_.gltf

Stand B Table chair

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/B/Table_Chair_B_/Table_Chair_B_.gltf

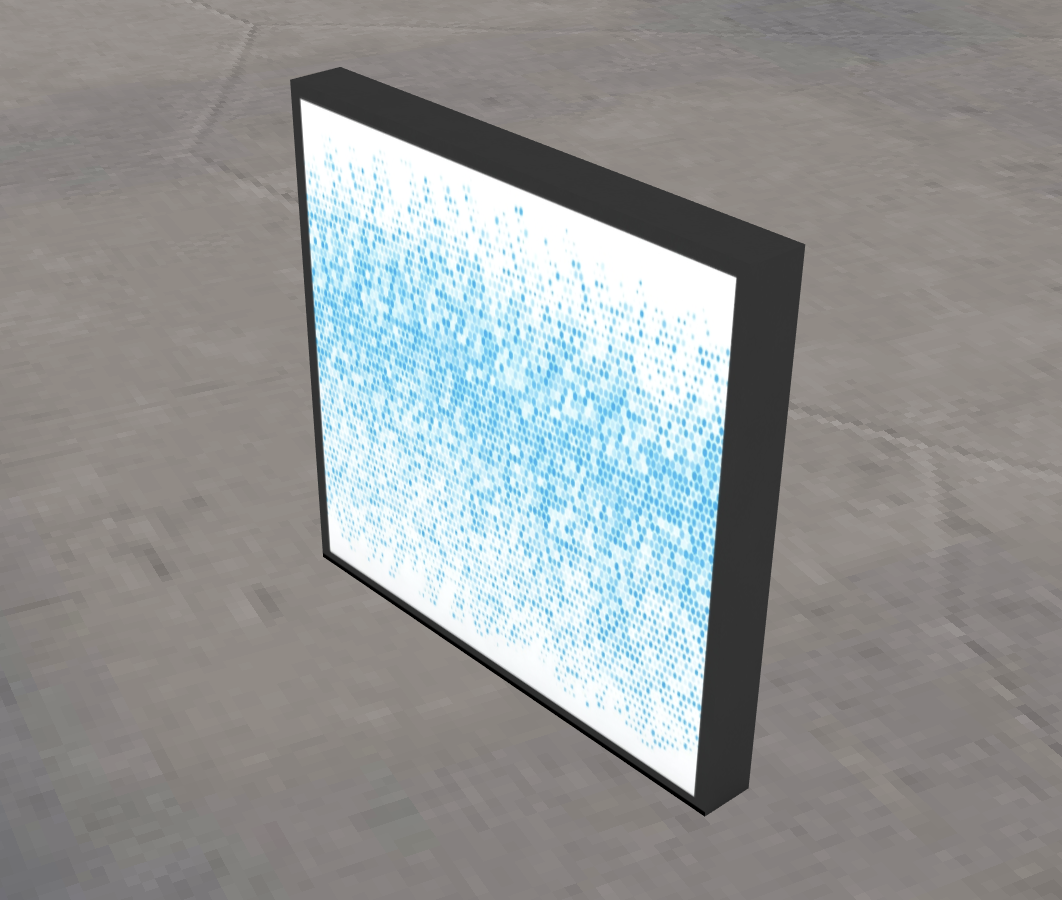

Stand B Wall

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/B/wall_B_/wall_B_.gltf

Texture:

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/B/wall_B_/wall_B_.jpg

metadata:

{"materialPropertiesOverrides":[{"materialNames":["wall_B_"],"overrides":{"map":"TEXTURE_URL"}}]}

Stand C Counter

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/C/Counter_C_/Counter_C_.gltf

Texture:

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/C/Counter_C_/Counter_C_.jpg

metadata:

{"materialPropertiesOverrides":[{"materialNames":["Material #7550"],"overrides":{"map":"TEXTURE_URL"}}]}

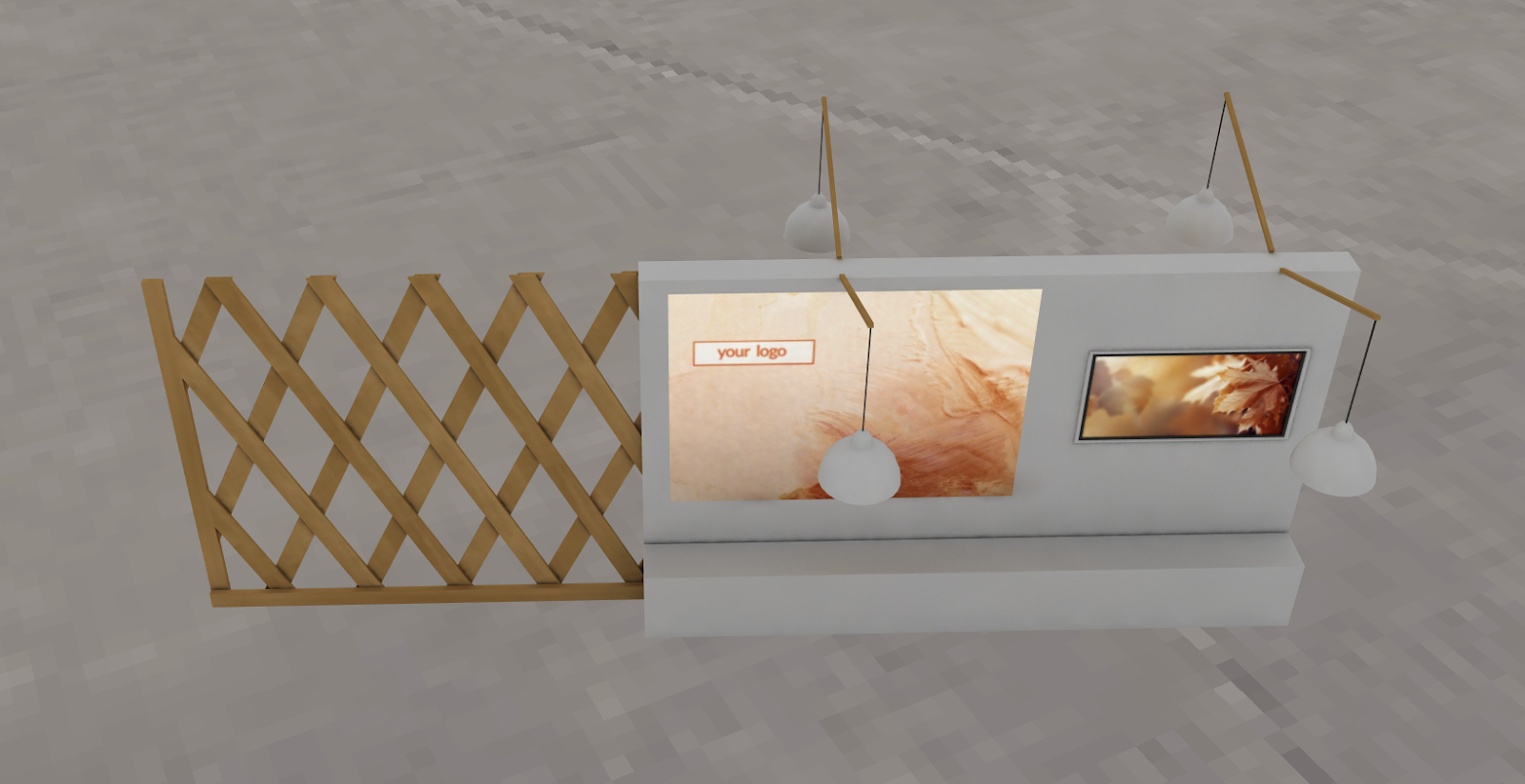

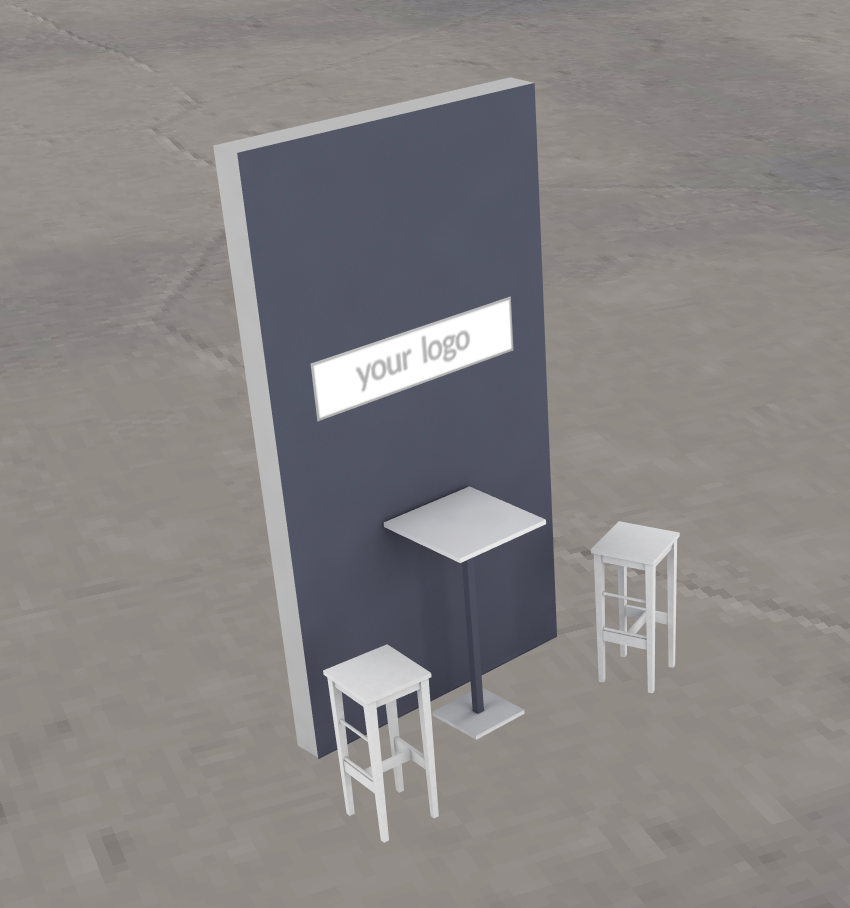

Stand C Wall

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/C/wall_meeting_C_/wall_meeting_C_.gltf

Texture:

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/C/wall_meeting_C_/wall_meeting_C_.jpg

metadata:

{"materialPropertiesOverrides":[{"materialNames":["Material #7551"],"overrides":{"map":"TEXTURE_URL"}}]}

Approximate polycount: 5790

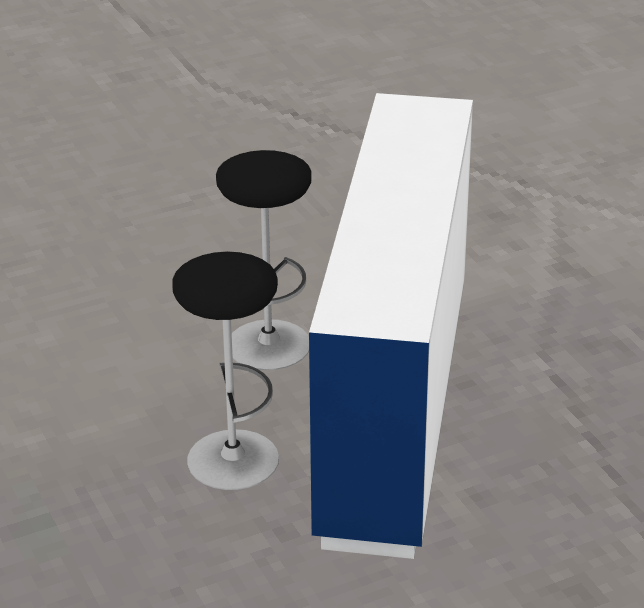

Stand D Counter stools

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/D/Counter_Stools_D_/Counter_Stools_D_.gltf

Stand D Spouse

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/D/Spouse_D_/Spouse_D_.gltf

Stand D Table chairs

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/D/Table_Chairs_D_/Table_Chairs_D_.gltf

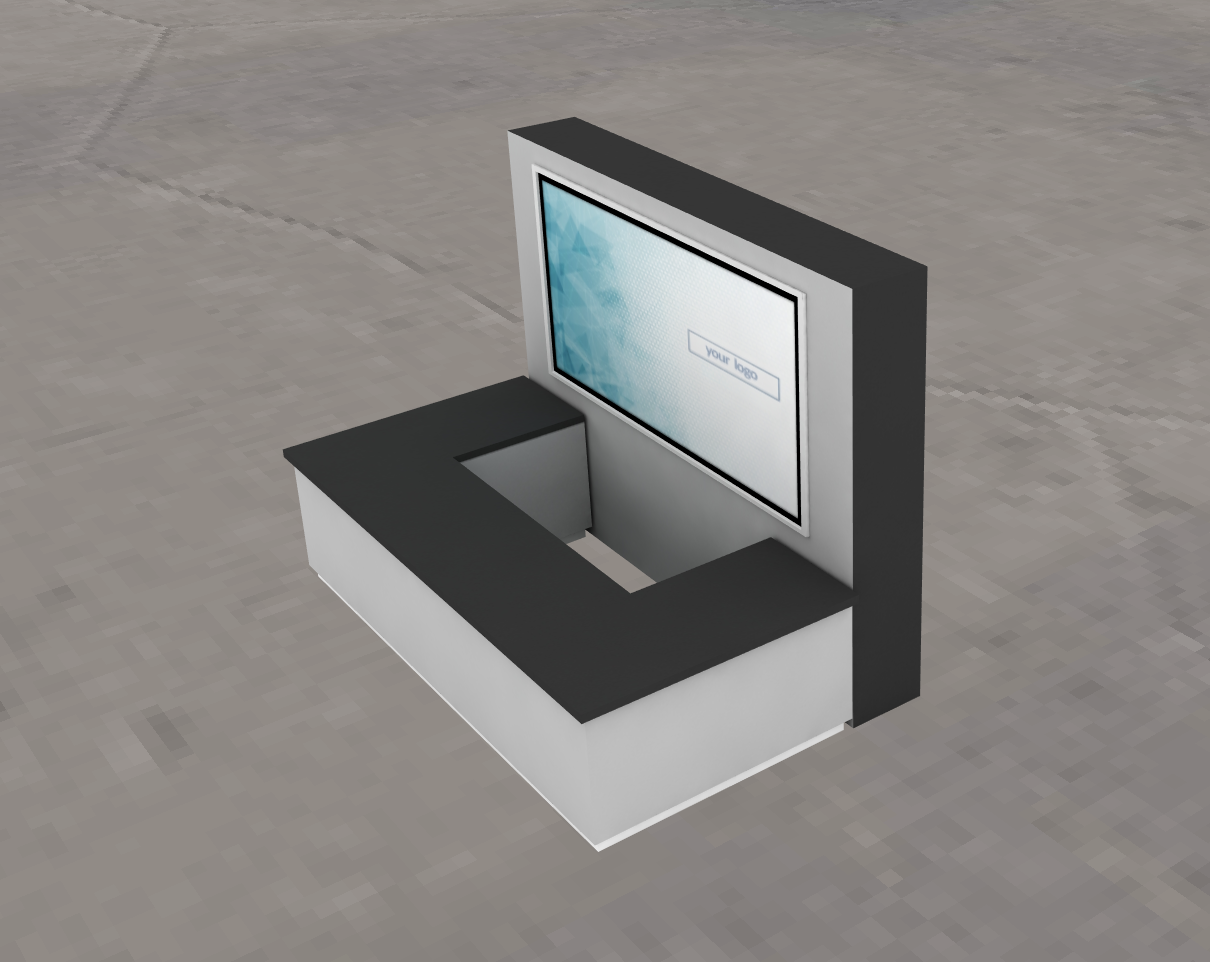

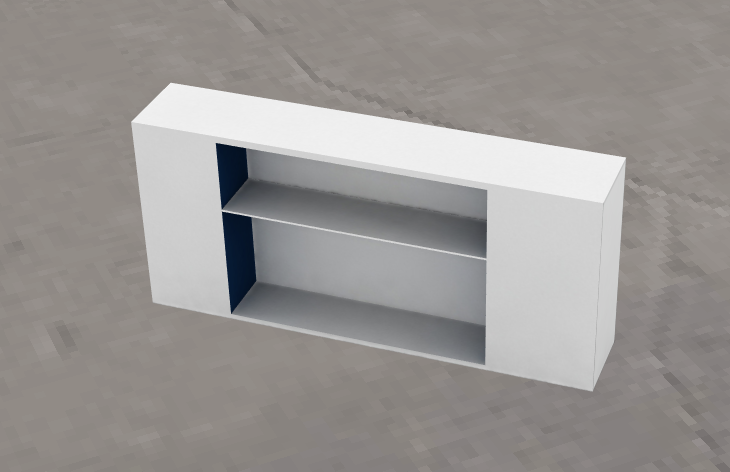

Stand D TV Furniture

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/D/TV_forniture_D_/TV_forniture_D_.gltf

Texture:

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/D/TV_forniture_D_/TV_forniture_D_.jpg

metadata:

{"materialPropertiesOverrides":[{"materialNames":["TV_forniture_D_"],"overrides":{"map":"TEXTURE_URL"}}]}

Stand E Counter 1

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/E/Counter_E_/Counter_E_.gltf

Texture:

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/E/Counter_E_/Counter_E_.jpg

metadata:

{"materialPropertiesOverrides":[{"materialNames":["Material #8713"],"overrides":{"map":"TEXTURE_URL"}}]}

Approximate polycount: 3030

Stand E Counter 2

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/E/Counter_E_01/Counter_E_01_.gltf

Texture:

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/E/Counter_E_01/Counter_E_01_.jpg

metadata:

{"materialPropertiesOverrides":[{"materialNames":["Material #8714"],"overrides":{"map":"TEXTURE_URL"}}]}

Approximate polycount: 3726

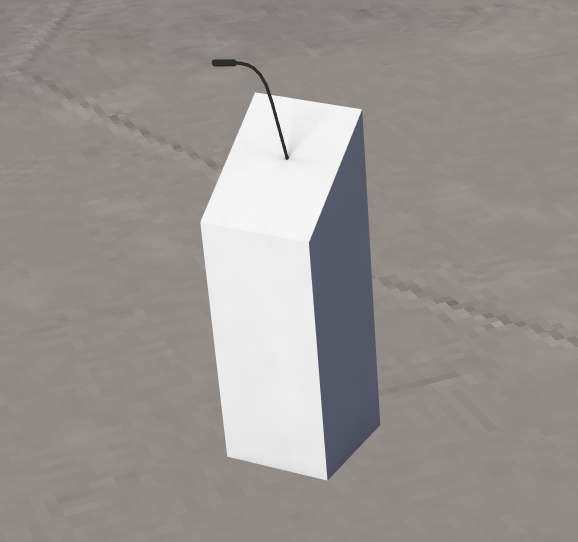

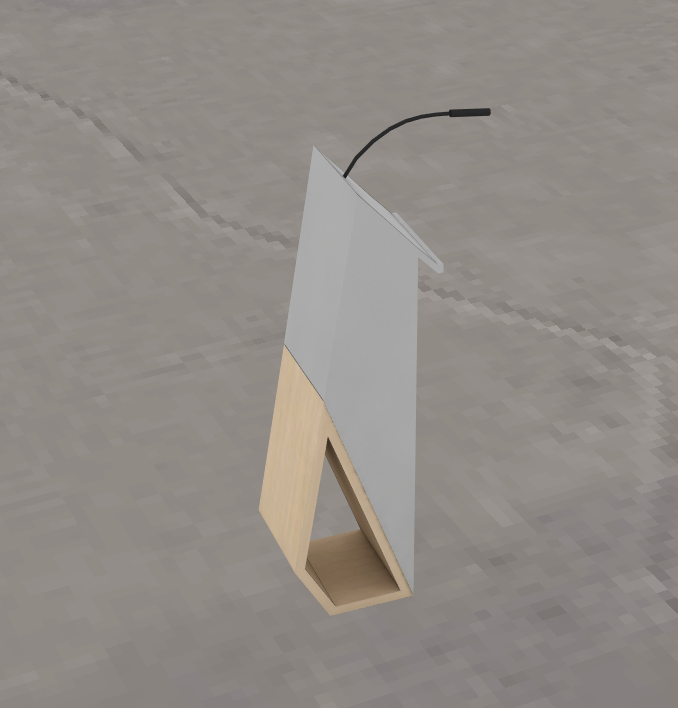

Stand E Lectern

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/E/Lectern_E_/Lectern_E_.gltf

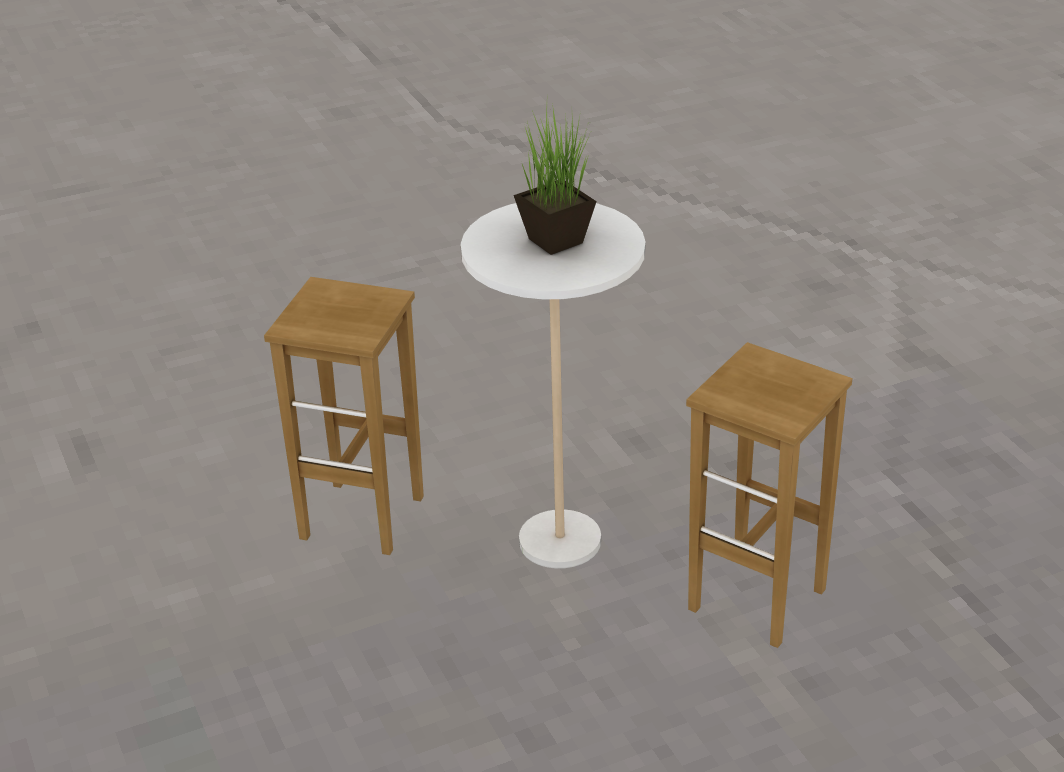

Stand E Table stool

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/E/Table_Stool_E_/Table_Stool_E_.gltf

Stand F Chairs

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/F/Branding_Chairs_F_/Branding_Chairs_F_.gltf

Texture:

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/F/Branding_Chairs_F_/Branding_Chairs_F_.jpg

metadata:

{"materialPropertiesOverrides":[{"materialNames":["Material #5602"],"overrides":{"map":"TEXTURE_URL"}}]}

Approximate polycount: 4068

Stand F Counter

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/F/Counter_F_/Counter_F_.gltf

Stand F Lectern

https://cache.learnbrite.com/_assets_/models/exhibition_stands/modules/F/Lectern_F/Lectern_F_.gltf
